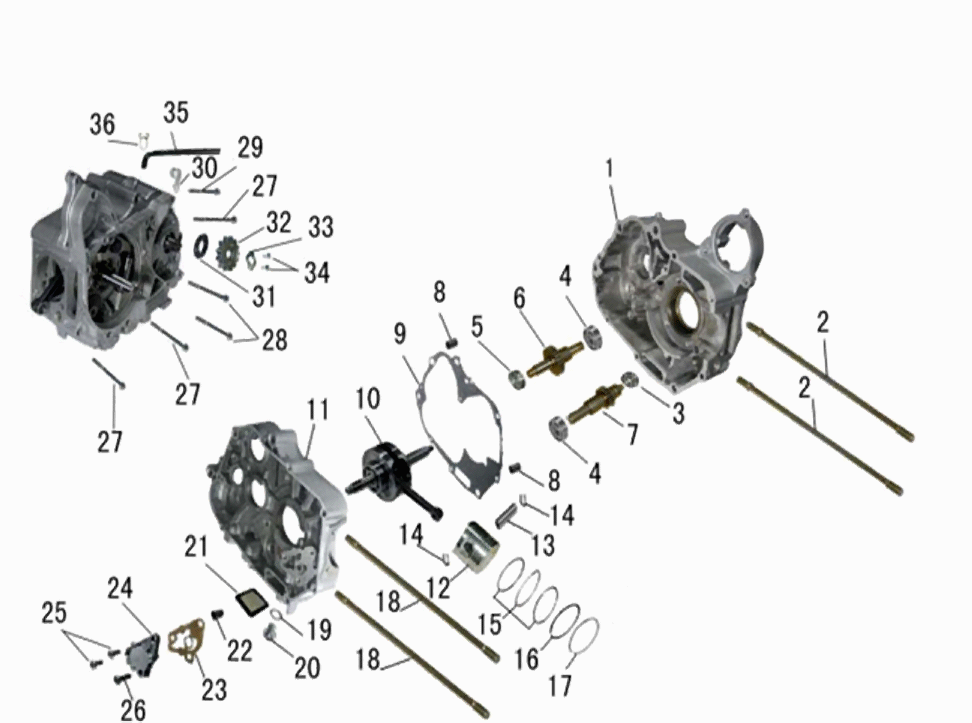

Crankcase with Crankshaft & Piston
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 101043-0084 | Left Crankcase Assy. | 1 | /ea | $ 76.50 |
| 2 | 101043-0085 | Cylinder Bolt B | 2 | /ea | $ 20.40 |
| 3 | 101043-0086 | Bearing 6001 | 1 | /ea | $ 13.60 |
| 4 | 101043-0087 | Bearing 6203 | 2 | /ea | $ 13.60 |
| 5 | 101043-0088 | Bearing 6201 | 1 | /ea | $ 13.60 |
| 6 | 101043-0089 | CounterShaft | 1 | /ea | $ 34.00 |
| 7 | 101043-0090 | MainShaft | 1 | /ea | $ 34.00 |
| 8 | 101043-0126 | Dowel Pin Ф10×14 | 2 | /ea | $ 5.10 |
| 9 | 101043-0091 | Crankcase Gasket | 1 | /ea | $ 17.00 |
| 10 | 101043-0092 | Crankshaft Connecting Rod | 1 | /ea | $ 59.50 |
| 11 | 101043-0093 | Right Crankcase Assy. | 1 | /ea | $ 59.50 |
| 12 | 101043-0094 | Piston | 1 | /ea | $ 34.00 |
| 13 | 101043-0095 | Piston Pin | 1 | /ea | $ 17.00 |
| 14 | 101043-0096 | Piston Pin Circlip | 2 | /ea | $ 6.80 |
| 15 | 101043-0097 | 3-Piece Oil Ring | 1 | /ea | $ 17.00 |
| 16 | 101043-0098 | Pinston Ring 2 | 1 | /ea | $ 8.50 |
| 17 | 101043-0099 | Pinston Ring 1 | 1 | /ea | $ 8.50 |
| 18 | 101043-0100 | Cylinder Bolt A | 2 | /ea | $ 20.40 |
| 19 | 101043-0101 | Aluminum Washer 12.2×20×2 | 1 | /ea | $ 6.80 |
| 20 | 101043-0102 | Drain Plug | 1 | /ea | $ 17.00 |
| 21 | 101043-0103 | Oil Filter Screen | 1 | /ea | $ 15.30 |
| 22 | 101043-0104 | Sprocket Bush | 1 | /ea | $ 8.50 |
| 23 | 101043-0105 | Oil Pump Gasket | 1 | /ea | $ 10.20 |
| 24 | 101043-0106 | Oil Pump | 1 | /ea | $ 34.00 |
| 25 | 101043-0141 | Screw M6×16 | 2 | /ea | $ 5.10 |
| 26 | 101043-0142 | Screw M6×22 | 1 | /ea | $ 5.10 |
| 27 | 101043-0150 | Bolt M6×60 | 3 | /ea | $ 8.50 |
| 28 | 101043-0151 | Bolt M6×65 | 2 | /ea | $ 8.50 |
| 29 | 101043-0149 | Bolt M6×50 | 1 | /ea | $ 8.50 |
| 30 | 101043-0115 | Air Clamp | 1 | /ea | $ 6.80 |
| 31 | 101043-0107 | CounterShaft Oil Seal 17*29*5 | 1 | /ea | $ 17.00 |
| 32 | 101043-0108 | Drive Sprocket 420-13T | 1 | /ea | $ 22.10 |
| 33 | 101043-0109 | Drive Sprocket Plate | 1 | /ea | $ 8.50 |
| 34 | 101043-0110 | Bolt M6×10 | 2 | /ea | $ 5.10 |
| 35 | 101043-0111 | Intake Pipe | 1 | /ea | $ 8.50 |
| 36 | 101043-0114 | Intake Pipe Clamp | 1 | /ea | $ 5.10 |
