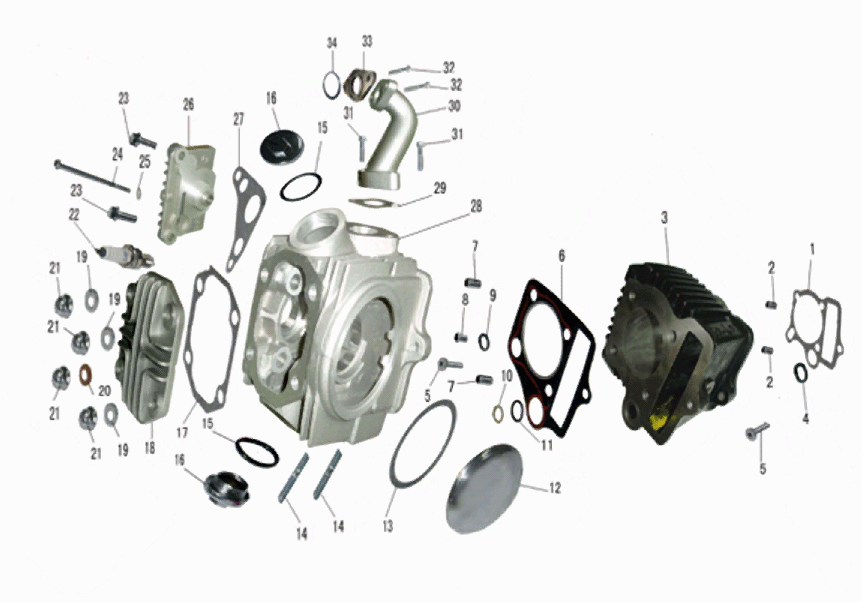

Cylinder Head Assembly
| CYLINDER HEAD/CYLINDER BODY | |||||
  |
|||||
| No. | NEW PART NUMBER | EN name | Qty/vehicle | QTY | Retail |
| 1 | 101043-0117 | Cylinder Body Gasket | 1 | /ea | $ 17.00 |
| 2 | 101043-0131 | Dowel Pin Ф8×12 | 2 | /ea | $ 6.80 |
| 3 | 101043-0001 | Cylinder Body | 1 | /ea | $ 76.50 |
| 4 | 101043-0129 | Rectangular Gasket B | 1 | /ea | $ 6.80 |
| 5 | 101043-0135 | Bolt M6×23 | 2 | /ea | $ 5.10 |
| 6 | 101043-0002 | Cylinder Head Gasket | 1 | /ea | $ 20.40 |
| 7 | 101043-0132 | Dowel Pin Ф8×14 | 2 | /ea | $ 6.80 |
| 8 | 101043-0116 | busher | 1 | /ea | $ 6.80 |
| 9 | 101043-0130 | Rectangular Gasket C | 1 | /ea | $ 6.80 |
| 10 | 101043-0123 | Rectangular Gasket A Washer | 1 | /ea | $ 6.80 |
| 11 | 101043-0128 | Rectangular Gasket A | 1 | /ea | $ 6.80 |
| 12 | 101043-0003 | Cylinder Head Cover, Left Head | 1 | /ea | $ 25.50 |
| 13 | 101043-0004 | Cylinder Head Cover Gasket, Left Head | 1 | /ea | $ 17.00 |
| 14 | 101043-0119 | Stud Bolt M6×35 | 2 | /ea | $ 13.60 |
| 15 | 101043-0005 | Valve Cover Gasket | 2 | /ea | $ 8.50 |
| 16 | 101043-0006 | Valve Cover | 2 | /ea | $ 17.00 |
| 17 | 101043-0007 | Cylinder Head Cover Gasket | 1 | /ea | $ 17.00 |
| 18 | 101043-0008 | Cylinder Head Cover | 1 | /ea | $ 30.60 |
| 19 | 101043-0121 | Iron Washer Ф6×13×2 | 3 | /ea | $ 8.50 |
| 20 | 101043-0120 | Copper Washer Ф6×13×2 | 1 | /ea | $ 8.50 |
| 21 | 101043-0118 | Cylinder Head Nut M6 | 4 | /ea | $ 8.50 |
| 22 | 101043-0009 | Spark Plug A7RTC | 1 | /ea | $ 13.60 |
| 23 | 101043-0145 | Bolt M6×20 | 2 | /ea | $ 5.10 |
| 24 | 101043-0153 | Bolt M6×110 | 1 | /ea | $ 10.20 |
| 25 | 101043-0127 | Aluminum Washer Ф6×13×2 | 1 | /ea | $ 6.80 |
| 26 | 101043-0010 | Cylinder Head Cover，Right Head | 1 | /ea | $ 30.60 |
| 27 | 101043-0011 | Cylinder Head Cover Gasket,Right Head | 1 | /ea | $ 13.60 |
| 28 | 101043-0012 | Cylinder Head | 1 | /ea | $ 76.50 |
| 28 | 101043-0012A | Cylinder Head Assy | 1 | /ea | $ 144.50 |
| 29 | 101043-0013 | Inlet Pipe Gasket | 1 | /ea | $ 8.50 |
| 30 | 101043-0014 | Inlet Pipe | 1 | /ea | $ 25.50 |
| 31 | 101043-0140 | Bolt M6×30 | 2 | /ea | $ 5.10 |
| 32 | 101043-0139 | Bolt M6×25 | 2 | /ea | $ 5.10 |
| 33 | 101043-0015 | Insulator | 1 | /ea | $ 13.60 |
| 34 | 101043-0016 | O-Ring Seal 25×2.4 | 1 | /ea | $ 8.50 |
