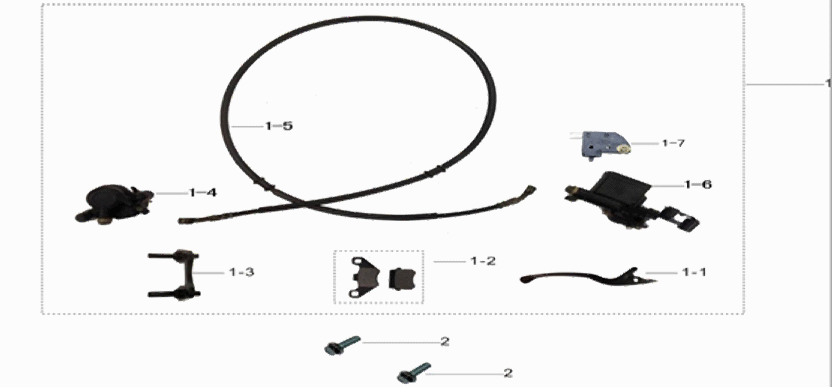

Rear Brake System
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 405000-0082 | rear brake assy. | 1 | /ea | $ 76.50 |
| 1-1 | 404002-0015 | rear brake lever-L | 1 | /ea | $ 13.60 |
| 1-2 | 405008-0007 | rear brake pad | 1 | /ea | $ 13.60 |
| 1-3 | 405009-0011 | rear brake bracket | 1 | /ea | $ 13.60 |
| 1-4 | 405007-0014 | rear brake bottom pump assy | 1 | /ea | $ 42.50 |
| 1-5 | 405006-0011 | rear brake oil pipe assy. | 1 | /ea | $ 25.50 |
| 1-6 | 405004-0011 | rear brake upper pump assy. / master cylinder | 1 | /ea | $ 28.90 |
| 1-7 | 405012-0009 | rear brake switch | 1 | /ea | $ 8.50 |
| 2 | 903019-0013-02 | flange bolt | 2 | /ea | $ 3.40 |
| 405004-0011-30 | rear brake park lock bracket/tab | 1 | /ea | $ 8.50 | |
| 405012-0005 | rear park lock kit | 1 | /ea | $ 13.60 |
