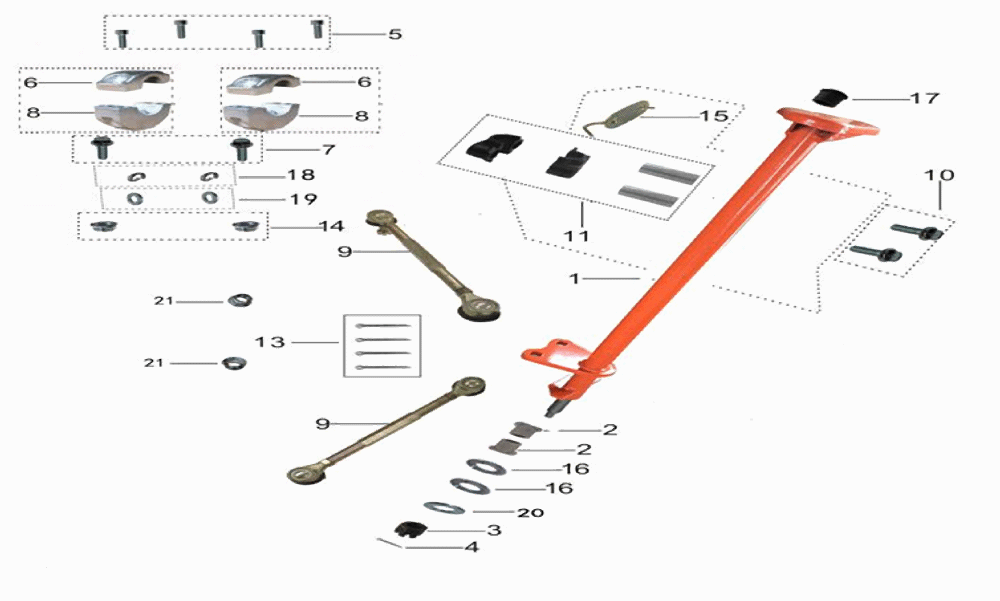

Steering Assembly
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 566000-0001-01 | Steering column | 1 | /ea | $ 45.00 |
| 1 | 566000-0001-01 | Steering column(black) | 1 | /ea | $ 45.00 |
| 1-1 | 566000-0001-02 | Steering column(orange) | 1 | /ea | $ 45.00 |
| 2 | 902002-0031 | steering column bush | 2 | /ea | $ 4.50 |
| 3 | 903008-0009 | slotted nut | 1 | /ea | $ 6.00 |
| 4 | 904002-0002-02 | cotter pin | 1 | /ea | $ 3.00 |
| 5 | 903013-0020-02 | screw | 4 | /ea | $ 4.50 |
| 6 | 601003-0003 | Upper rasier | 2 | /ea | $ 7.50 |
| 7 | 903017-0011 | bolt | 2 | /ea | $ 4.50 |
| 8 | 601004-0004 | Lower rasier | 2 | /ea | $ 7.50 |
| 9 | 603001-0002 | steering pull rod | 2 | /ea | $ 22.50 |
| 10 | 903018-0015 | flange bolt | 2 | /ea | $ 6.00 |
| 11 | 603004-0003 | steering column raiser | 2 | /ea | $ 12.00 |
| 13 | 904002-0002-02 | cotter pin | 4 | /ea | $ 3.00 |
| 14 | 903007-0007 | flange lock nut | 2 | /ea | $ 4.50 |
| 15 | 568000-0001 | clip | 1 | /ea | $ 6.00 |
| 16 | 903003-0003 | flat washer | 2 | /ea | $ 6.00 |
| 17 | 908004-0003 | plug | 1 | /ea | $ 6.00 |
| 18 | 903001-0005 | spring washer | 2 | /ea | $ 3.00 |
| 19 | 903002-0008 | flat washer | 2 | /ea | $ 3.00 |
| 20 | 903002-0008-02 | flat washer | 1 | /ea | $ 4.50 |
| 21 | 903007-0006 | nut | 2 | /ea | $ 4.50 |
