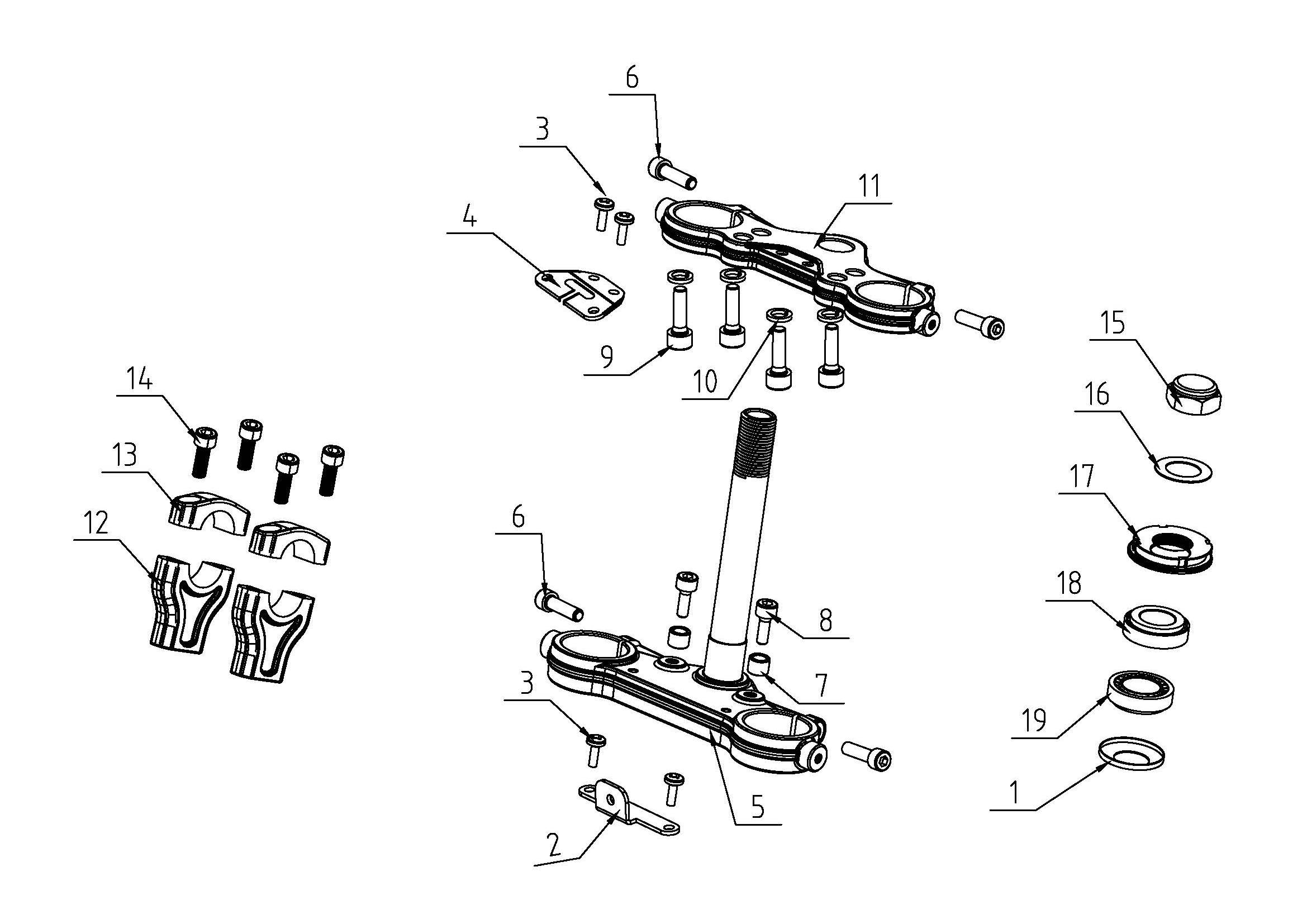

| 1 |
 |
10031 |
Dust Sheild, Lower Fork Bearing (Part #10031) Fits TT1000R, TTMAX, TT1600R, HRH, HRS, XRA, XRB, XRA, XRB |
$3.00 |
|
| 2 |
 |
10195 |
Bracket, Headlight Mounting, Lower (Part #10195) Fits TT1600R, HRH, HRS, XRA, XRB |
$5.00 |
|
| 3 |
 |
00274 |
Screw, SHCS, Button Head SS, M6X10 (Part #00274) Fits TT1000R, TTMAX, TT1600R, HRH, HRS, XRA, XRB |
$0.12 |
|
| 4 |
 |
10196 |
Bracket, Headlight Mounting, Upper (Part #10196) Fits TT1600R, HRH, HRS, XRA, XRB |
$5.00 |
|
| 5 |
 |
10280 |
Fork Clamp Set, Forged 6061, 43mm/45mm 0 Degree Rake with Stem and Hardware, Clear Zinc (Part #10280) Fits XRA, XRB |
$189.95 |
|
| 6 |
 |
00240 |
Screw, SHCS, SS Polished M8X25 (Part #00240) Fits TT350R, TT750R, TT1000R, TTMAX, XRA, XRB |
$0.60 |
|
| 7 |
 |
00145 |
Spacer, Fork Stop, 12x8.5-8 (Part #00145) Fits TT250, TT350R, TT750R, TT1000R, TTMAX, TT1600R, HRH, HRS, XRA, XRB |
$0.30 |
|
| 8 |
|
00240 |
Screw, SHCS, SS Polished M8X25 (Part #00240) Fits TT350R, TT750R, TT1000R, TTMAX, XRA, XRB |
$0.60 |
|
| 9 |
 |
00254 |
Screw, SHCS M10X20 Polished SS (Part #00254) Fits HRH, HRS, XRA, XRB |
$1.00 |
|
| 10 |
 |
00217 |
Washer, Lock 10 (Part #00217) Fits TT1600R, HRH, HRS, XRA, XRB |
$0.12 |
|
| 11 |
|
10280 |
Fork Clamp Set, Forged 6061, 43mm/45mm 0 Degree Rake with Stem and Hardware, Clear Zinc (Part #10280) Fits XRA, XRB |
$189.95 |
|
| 12 |
 |
10284 |
Handlebar Clamp Set, 2 Bolt CNC 6061-T6, 28.6mm Bar, 95mm Tall, Forward Offset, Aluminum Finish (Part #10284) Fits XRA |
$39.95 |
|
| 12.1 |
 |
10286 |
Handlebar Clamp Set, 2 Bolt Mounting Lowers, Forged 6061, 28.6mm Bar Straight, 55mm Tall, Aluminum Finish (Part #10286) Fits XRB |
$25.95 |
|
| 14 |
|
00238 |
Screw, SHCS, SS Polished M8X20 with patchlock (Part #00238) Fits TT1600R, HRH, HRS, XRA, XRB |
$0.03 |
|
| 15 |
 |
00218 |
Nut, Cap Type, M22X1 (Part #00218) Fits TT1600R, HRH, HRS, XRA, XRB |
$4.95 |
|
| 16 |
 |
00234 |
Washer, Fork Stem Nut, DIN spec 22MMx.5 (Part #00234) Fits HRH, HRS, XRA, XRB |
$0.75 |
|
| 17 |
 |
00230 |
Nut, Bearing Tension, Fork Stem, 54MxM22x1 (Part #00230) Fits XRA, XRB |
$8.00 |
|
| 18 |
 |
00220 |
Bearing, Tapered Roller, Upper Fork Stem 91683-22.5 (Part #00220) Fits TT1000R, TTMAX, TT1600R, HRH, HRS, XRA, XRB |
$10.00 |
|
| 19 |
 |
00221 |
Bearing, Tapered Roller, Lower Fork Stem 91683-24 (Part #00221) Fits TTMAX, TT1600R, HRH, HRS, XRA, XRB |
$10.00 |
