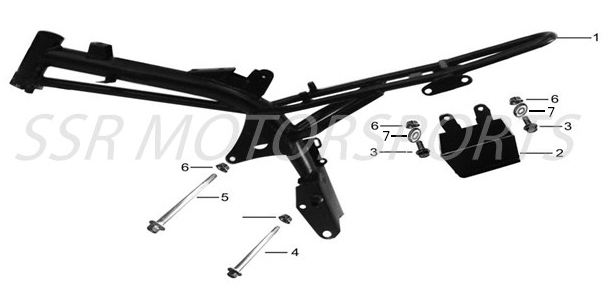

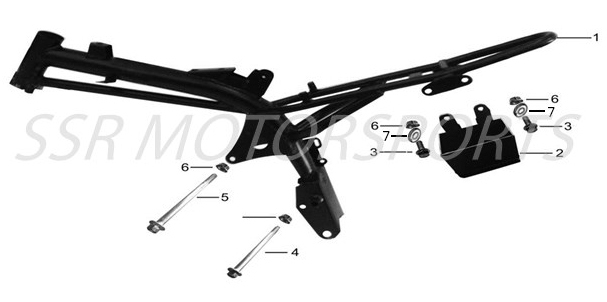

Frame
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00390-11-00 | FRAME ASSY *OVERSIZE/WEIGHT* | $159.00 | 1 |
| 2 | A00391-11-00 | BATTERY BOX 119X70X77 | $29.80 | 1 |
| 3 | A00015-19-01 | FLANGE BOLT M8X20 S12 | $2.00 | 2 |
| 4 | A00047-19-01 | FLANGE BOLT M8X110 (NOTCHED) | $2.60 | 1 |
| 5 | A00046-19-01 | FLANGE BOLT M8X110 | $2.60 | 1 |
| 6 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 4 |
| 7 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 2 |
