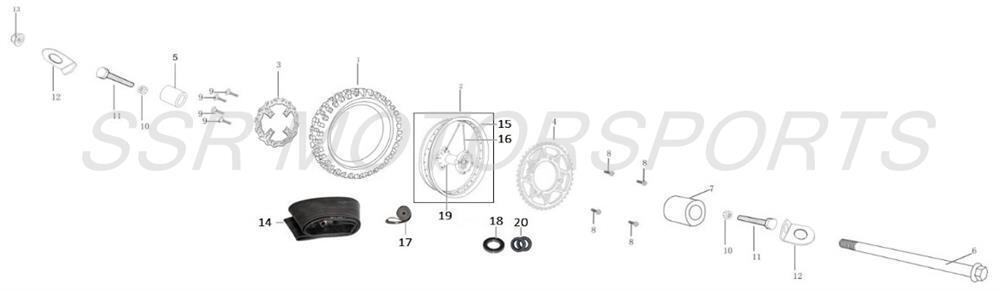

Rear Wheel
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00322-18-00 | TIRE 2.50-10 | $29.80 | 1 |
| 2 | A00460-18-00 | REAR WHEEL ASSY | $88.20 | 1 |
| 3 | A00782-04-00 | BRAKE ROTOR | $31.50 | 1 |
| 4 | A00310-07-00 | REAR SPROCKET 37T | $24.50 | 1 |
| 5 | A00283-18-00 | RIGHT SPACER | $6.10 | 1 |
| 6 | A00331-18-00 | AXLE | $12.30 | 1 |
| 7 | A00467-18-00 | LEFT SPACER | $6.10 | 1 |
| 8 | A00007-19-01 | BOLT M8X25 | $2.00 | 4 |
| 9 | A00034-19-10 | ROTOR BOLT | $2.00 | 4 |
| 10 | A00002-22-01 | NUT M8 | $2.00 | 2 |
| 11 | A00286-18-00 | BOLT M8X40 | $2.50 | 2 |
| 12 | A00464-18-00 | CHAIN ADJUSTER PLATE | $6.10 | 2 |
| 13 | A00001-22-03 | LOCKNUT M12 | $2.50 | 1 |
| 14 | A00219-18-00 | INNER TUBE | $15.80 | 1 |
| 15 | A00463-18-00 | REAR RIM | $38.50 | 1 |
| 16 | A00461-18-00 | SPOKE SET | $24.50 | 1 |
| 17 | A00334-18-00 | RIM STRIP | $6.10 | 1 |
| 18 | A00075-28-00 | BEARING | $6.10 | 2 |
| 19 | A00404-08-00 | REAR HUB | $85.80 | 1 |
| 20 | A00034-26-00 | DUST SEAL | $2.60 | 2 |
