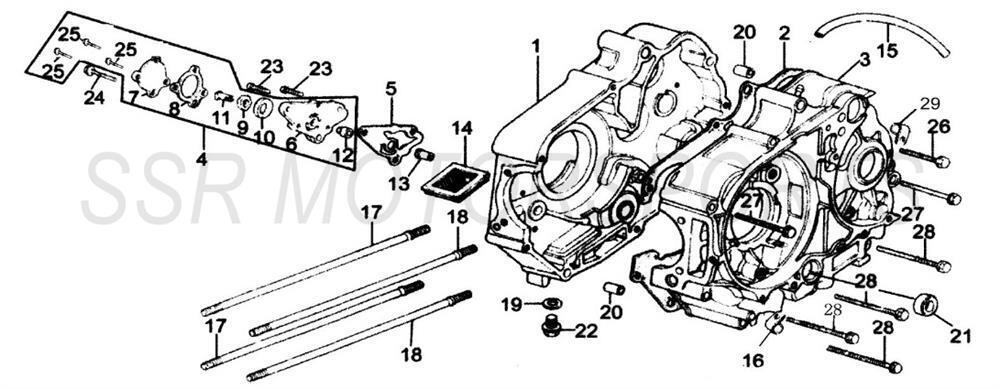

Crankcase & Oil Pump
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01219-09-00 | RIGHT CRANKCASE HALF | $90.00 | 1 |
| 2 | A00122-13-00 | CENTER CASE GASKET | $14.00 | 1 |
| 3 | A01220-09-00 | LEFT CRANKCASE HALF | $112.00 | 1 |
| 4 | A01221-09-00 | OIL PUMP ASSY | $42.00 | 1 |
| 5 | A00123-13-00 | OIL PUMP GASKET | $6.00 | 1 |
| 6 | A01222-09-00 | OIL PUMP BODY | $18.00 | 1 |
| 7 | A01225-09-00 | OIL PUMP COVER | $8.00 | 1 |
| 8 | A00124-13-00 | OIL PUMP COVER GASKET | $4.00 | 1 |
| 9 | A01226-09-00 | OIL PUMP INNER ROTOR | $8.00 | 1 |
| 10 | A01227-09-00 | OIL PUMP OUTER ROTOR | $8.00 | 1 |
| 11 | A01228-09-00 | OIL PUMP SHAFT | $8.00 | 1 |
| 12 | A01229-09-00 | OIL PUMP SHAFT BUSHING | $2.00 | 1 |
| 13 | A01230-09-00 | OIL PUMP SPROCKET BUSHING | $2.00 | 1 |
| 14 | A01098-09-00 | OIL SCREEN | $10.00 | 1 |
| 15 | A02356-09-00 | CRANKCASE VENT HOSE | $10.00 | 1 |
| 16 | A01100-09-00 | PIPE CLAMP | $1.50 | 1 |
| 17 | A00003-19-04 | CYLINDER STUD A | $8.00 | 2 |
| 18 | A00002-19-04 | CYLINDER STUD B | $8.00 | 2 |
| 19 | A00012-21-04 | CRUSH WASHER | $1.50 | 1 |
| 20 | A00002-23-00 | DOWEL PIN | $1.50 | 2 |
| 21 | A00002-26-00 | OIL SEAL | $4.00 | 1 |
| 22 | A01102-09-00 | OIL DRAIN BOLT | $4.00 | 1 |
| 23 | A00001-19-03 | BOLT M6X16 | $1.50 | 2 |
| 24 | A00030-19-03 | FLANGE BOLT M6X22 | $1.50 | 1 |
| 25 | A00037-19-01 | FLANGE BOLT M5X10 | $1.50 | 3 |
| 26 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $1.50 | 1 |
| 27 | A00429-19-08 | CASE FLANGE BOLT M6X60 | $2.00 | 2 |
| 28 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.00 | 4 |
