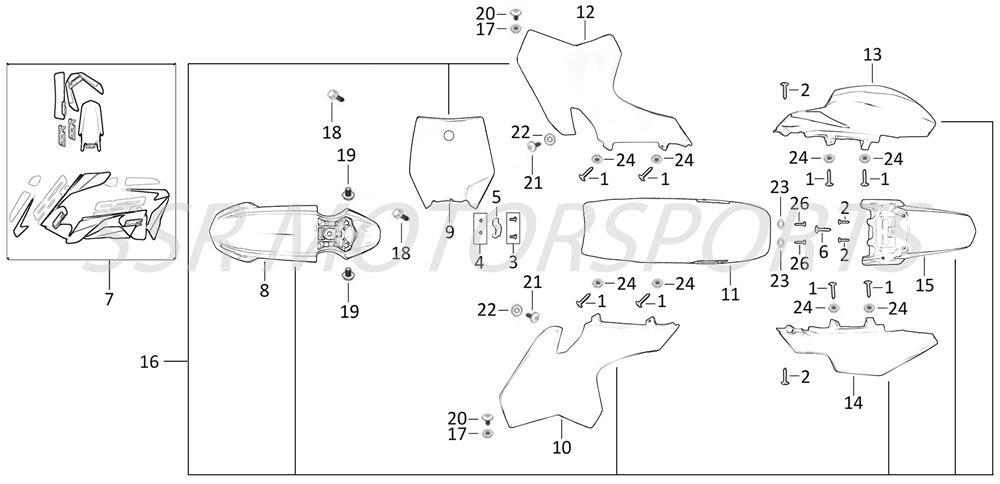

Body & Seat
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00010-20-03 | ST SCREW ST4.2X16 | $2.00 | 8 |
| 2 | A00002-20-03 | ST SCREW ST4.2X12 | $2.00 | 4 |
| 3 | A00009-20-01 | PHILLIPS BOLT M4X12 | $2.00 | 2 |
| 4 | A00348-22-04 | LOCKNUT M4 | $2.00 | 2 |
| 5 | A00684-02-00 | FRONT BRAKE CABLE/HOSE GUIDE WHITE | $2.00 | 1 |
| 6 | A00009-20-03 | ST SCREW ST4.8X16 | $2.00 | 1 |
| 7 | A00702-02-00 | GRAPHIC KIT CRF/3M | $45.50 | 1 |
| 8 | A00685-02-02 | FRONT FENDER BLACK | $15.80 | 1 |
| 8 | A00685-02-01 | FRONT FENDER WHITE | $15.80 | 1 |
| 8 | A00685-02-40 | FRONT FENDER LIME GREEN | $15.80 | 1 |
| 8 | A00685-02-12 | FRONT FENDER BLUE | $15.80 | 1 |
| 8 | A00685-02-18 | FRONT FENDER RED | $15.80 | 1 |
| 8 | A00685-02-03 | FRONT FENDER ORANGE | $15.80 | 1 |
| 9 | A00686-02-02 | FRONT NUMBER PLATE BLACK | $15.80 | 1 |
| 9 | A00686-02-01 | FRONT NUMBER PLATE WHITE | $15.80 | 1 |
| 9 | A00686-02-40 | FRONT NUMBER PLATE LIME GREEN | $15.80 | 1 |
| 9 | A00686-02-12 | FRONT NUMBER PLATE BLUE | $15.80 | 1 |
| 9 | A00686-02-18 | FRONT NUMBER PLATE RED | $15.80 | 1 |
| 9 | A00686-02-03 | FRONT NUMBER PLATE ORANGE | $15.80 | 1 |

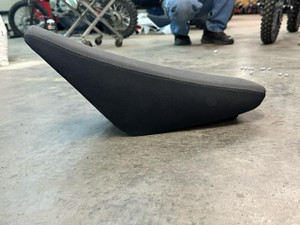

| 11 | A00717-02-00 | SEAT LOW | $52.50 | 1 |
| 11 | A00666-02-02 | SEAT TALL (SR110DX) | $52.50 | 1 |
| 16 | A00692-02-02 | COMPLETE PLASTIC KIT BLACK | $49.00 | 1 |
| 16 | A00692-02-01 | COMPLETE PLASTIC KIT WHITE | $49.00 | 1 |
| 16 | A00692-02-40 | COMPLETE PLASTIC KIT LIME GREEN | $49.00 | 1 |
| 16 | A00692-02-12 | COMPLETE PLASTIC KIT BLUE | $49.00 | 1 |
| 16 | A00692-02-18 | COMPLETE PLASTIC KIT RED | $49.00 | 1 |
| 16 | A00692-02-03 | COMPLETE PLASTIC KIT ORANGE | $49.00 | 1 |
| 17 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
| 18 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 2 |
| 19 | A00008-19-03 | FLANGE BOLT M6X12 | $2.00 | 2 |
| 20 | A00003-20-01 | SCREW M6X16 | $2.00 | 2 |
| 26 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
