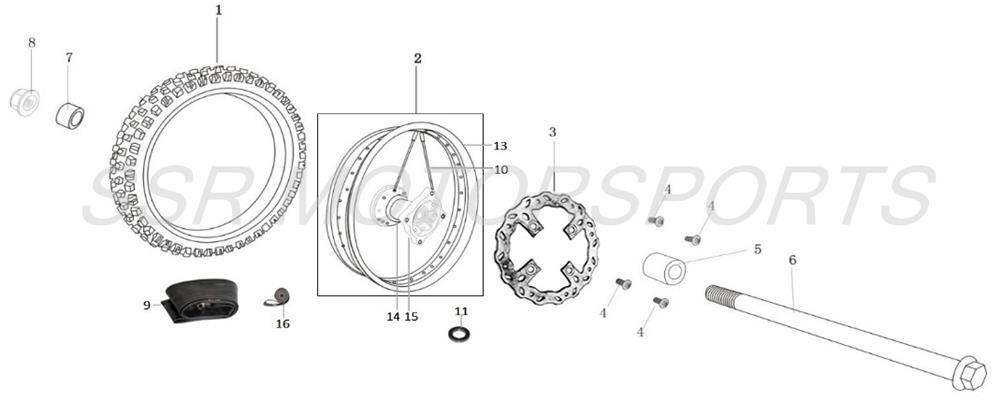

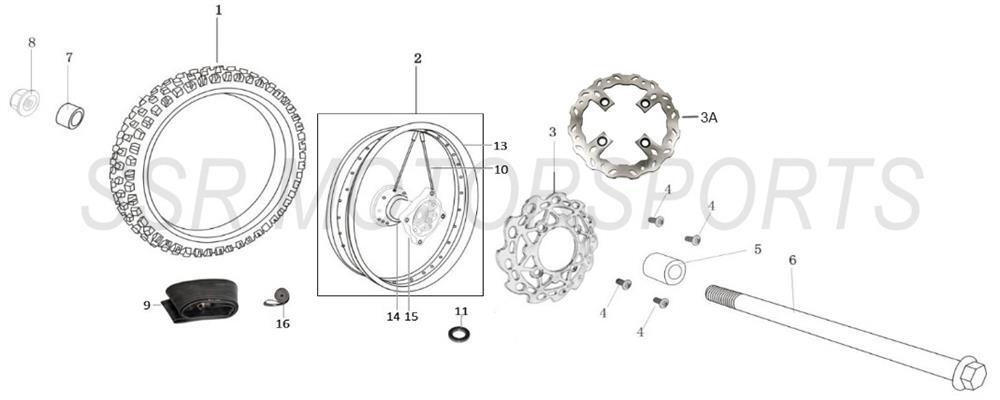

Front Wheel
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00525-18-00 | FRONT TIRE 2.75-12 | $40.30 | 1 |
| 2 | A00356-18-00 | FRONT WHEEL ASSY 1.60-12" | $96.60 | 1 |
| 2 | A00357-18-00 | FRONT WHEEL ASSY (PRO) 110DX (SR110DX Model) | $129.00 | 1 |
| 3 | A00473-04-00 | FRONT BRAKE ROTOR 190 16.5XH1.5 | $31.50 | 1 |
| 3A | A00682-04-00 | FRONT/REAR BRAKE ROTOR AFTER VIN ...HC100819 | $31.50 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN | $2.00 | 4 |
| 5 | A00277-18-00 | FRONT LEFT WHEEL SPACER 12X20XH26 | $6.10 | 1 |
| 6 | A00278-18-00 | WHEEL AXLE 12X205-1.25 | $12.30 | 1 |
| 7 | A00279-18-00 | FRONT RIGHT WHEEL SPACER 12X20XH17 | $6.10 | 1 |
| 8 | A00001-22-03 | FLANGE LOCKNUT M12 | $2.50 | 1 |
| 9 | A00358-18-00 | INNERTUBE 2.75-12 | $17.50 | 1 |
| 10 | A00507-18-00 | FRONT SPOKE SET (32PCS/SET) 9GX130 (16 INNER/16 OUTER/32 NIPPLES) | $24.50 | 1 |
| 11 | A00075-28-00 | BEARING 6301-2RS | $6.10 | 2 |
| 14 | A00399-18-00 | FRONT WHEEL HUB | $85.80 | 1 |
| 16 | A00292-18-00 | RIM STRIP 12" | $6.10 | 1 |
