Muffler
Click parts on table to add

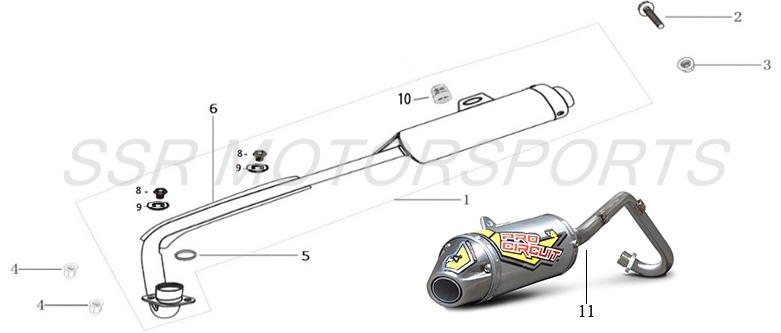

SR110/SR110SEMI

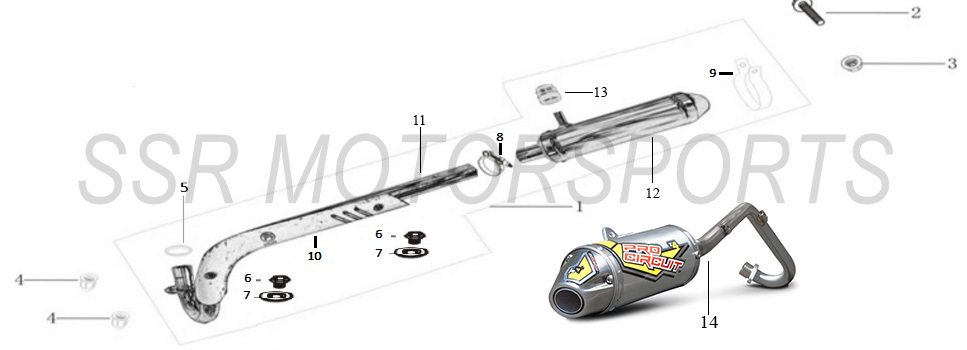

SR110 DX| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00081-10-00 | EXHAUST SYSTEM BLACK | $76.00 | 1 |
| 2 | A00049-19-01 | FLANGE BOLT GB5789-86 M8X35 S12 | $2.00 | 1 |
| 3 | A00100-22-34 | FLANGE LOCKNUT M8 | $1.50 | 1 |
| 4 | A00001-22-01 | NUT GB923 M6 | $1.50 | 2 |
| 5 | A00115-13-00 | EXHAUST GASKET | $6.00 | 1 |
| 6 | A00094-10-00 | MUFFLER GUARD | $14.00 | 1 |
| 8 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT M6X8 | $1.50 | 2 |
| 9 | A00002-21-02 | LOCK WASHER M6 | $1.50 | 2 |
| 10 | A00118-10-00 | RUBBER DAMPER | $1.50 | 1 |
| 11 | A00082-01-00 | PRO CIRCUIT T-4 EXHAUST SYSTEM OPTIONAL ACCESSORY | $488.00 | 1 |
| 1 | A00076-10-00 | MUFFLER ASSY CHROME | $103.00 | 1 |
| 2 | A00049-19-01 | FLANGE BOLT GB5789-86 M8X35 S12 | $2.00 | 1 |
| 3 | A00002-22-01 | FLANGE NUT M8 | $1.50 | 1 |
| 4 | A00093-22-03 | FLANGE NUT M6 | $1.50 | 2 |
| 5 | A00115-13-00 | EXHAUST GASKET | $6.00 | 1 |
| 6 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT M6X8 | $1.50 | 2 |
| 7 | A00002-21-02 | LOCK WASHER M6 | $1.50 | 2 |
| 8 | A00202-10-00 | CLAMP | $6.00 | 1 |
| 9 | A00203-10-00 | MUFFLER CLAMP WITH RUBBER | $18.00 | 1 |
| 10 | A00101-10-00 | MUFFLER GUARD | $18.00 | 1 |
| 11 | A00116-10-00 | MUFFLER HEAD PIPE ONLY | $50.00 | 1 |
| 12 | A00117-10-00 | MUFFLER ONLY | $76.00 | 1 |
| 13 | A00118-10-00 | RUBBER DAMPER | $1.50 | 1 |
| 14 | A00082-01-00 | PRO CIRCUIT T-4 EXHAUST SYSTEM OPTIONAL ACCESSORY | $488.00 | 1 |
Selected Parts
