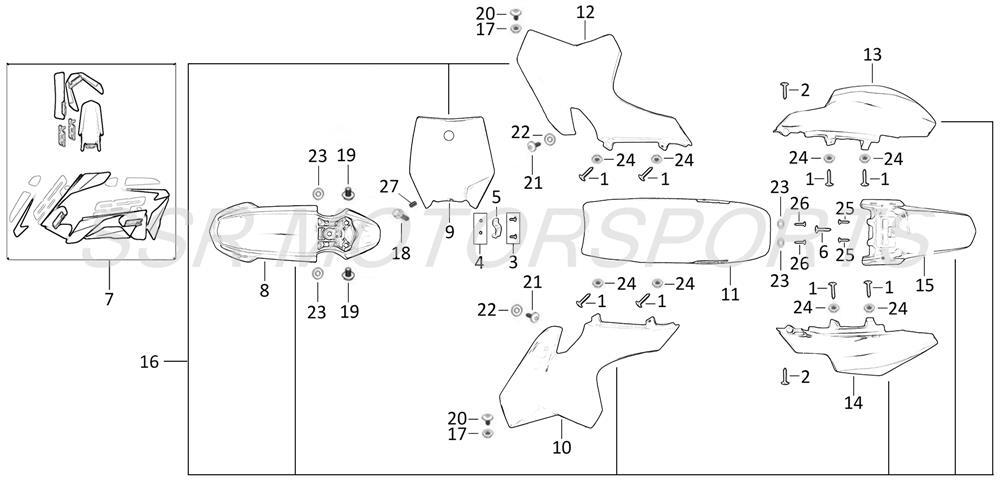

Body

Click parts on table to add
# Part # Description Price Qty
1 A00010-20-03 ST SCREW ST4.2X16 $2.00 8
2 A00002-20-03 ST SCREW ST4.2X12 $2.00 4
3 A00009-20-01 PHILLIPS BOLT M4X12 $2.00 2
4 A00348-22-04 LOCKNUT M4 $2.00 2
5 A00684-02-00 FRONT BRAKE CABLE/HOSE GUIDE WHITE $2.00 1
6 A00009-20-03 ST SCREW ST4.8X16 $2.00 1
7 A01160-SE-18 GRAPHIC KIT BLUE $45.50 1
7 A01159-SE-02 GRAPHIC KIT SILVER $45.50 1
8 A00685-02-02 FRONT FENDER BLACK $15.80 1
8 A00685-02-18 FRONT FENDER RED $15.80 1
9 A00686-02-02 FRONT NUMBER PLATE BLACK $15.80 1
9 A00686-02-18 FRONT NUMBER PLATE RED $15.80 1
10 A00687-02-02 LEFT FUEL TANK SHROUD BLACK $15.80 1
10 A00687-02-18 LEFT FUEL TANK SHROUD RED $15.80 1
11 A00717-02-00 SEAT LOW $52.50 1
12 A00688-02-02 RIGHT FUEL TANK SHROUD BLACK $15.80 1
12 A00688-02-18 RIGHT FUEL TANK SHROUD RED $15.80 1
13 A00689-02-02 RIGHT REAR NUMBER PLATE BLACK $15.80 1
13 A00689-02-18 RIGHT REAR NUMBER PLATE RED $15.80 1
14 A00690-02-02 LEFT REAR NUMBER PLATE BLACK $15.80 1
14 A00690-02-18 LEFT REAR NUMBER PLATE RED $15.80 1
15 A00691-02-02 REAR FENDER BLACK $15.80 1
15 A00691-02-18 REAR FENDER RED $15.80 1
16 A00692-02-02 COMPLETE PLASTIC KIT BLACK $49.00 1
16 A00692-02-18 COMPLETE PLASTIC KIT RED $49.00 1
17 A00093-22-03 FLANGE NUT M6 (SILVER -OR- BLACK) $2.00 2
18 A00003-19-81 FLANGE BOLT M6X25 8MM HEAD $2.00 1
19 A00008-19-03 FLANGE BOLT M6X12 $2.00 3
20 A00003-20-01 SCREW M6X16 $2.00 2
21 A00010-19-29 PAN HEAD PHILLIPS BOLT M6X10 $2.00 2
22 A00016-21-01 RUBBER WASHER 6X17X3.5 $2.00 2
23 A00011-21-01 WASHER M6X18X1.5 $2.00 5
24 A00017-21-01 WASHER 6X12X1.5 $2.00 6
26 A00419-19-08 CASE FLANGE BOLT M6X20 $2.00 2
27 A01161-02-00 SPACER 6.5X10X10 $2.00 1
