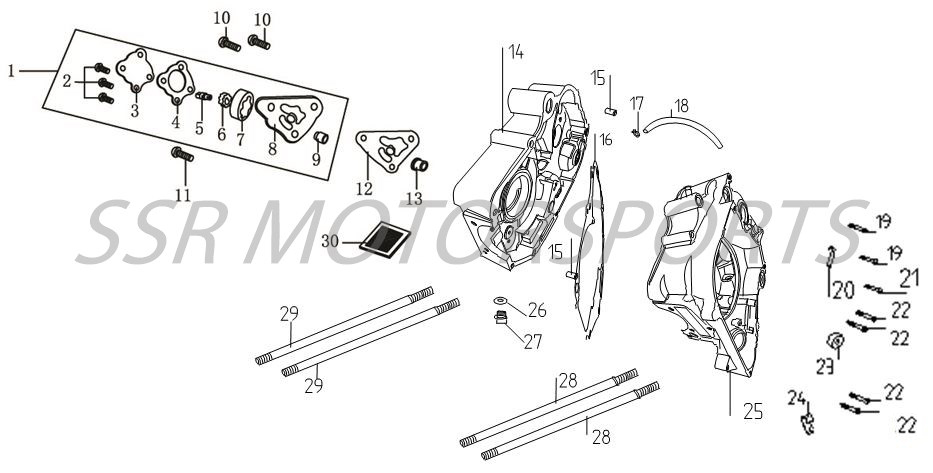

Crankcase and Oil Pump - 2P
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01221-09-00 | OIL PUMP ASSY | $49.00 | 1 |
| 2 | A00037-19-01 | FLANGE BOLT M5x10 | $2.00 | 3 |
| 3 | A01225-09-00 | OIL PUMP COVER | $8.80 | 1 |
| 4 | A00124-13-00 | OIL PUMP COVER GASKET | $4.40 | 1 |
| 5 | A01228-09-00 | OIL PUMP GEAR BOLT | $8.80 | 1 |
| 6 | A01226-09-00 | OIL PUMP INNER ROTOR | $8.80 | 1 |
| 7 | A01227-09-00 | OIL PUMP OUTER ROTOR | $8.80 | 1 |
| 8 | A01222-09-00 | OIL PUMP BODY | $21.00 | 1 |
| 9 | A01229-09-00 | OIL PUMP SHAFT BUSHING | $2.50 | 1 |
| 10 | A00001-19-03 | BOLT M6X16 | $2.00 | 2 |
| 11 | A00024-19-01 | FLANGE BOLT M6X22 | $2.00 | 1 |
| 12 | A00123-13-00 | OIL PUMP GASKET | $6.10 | 1 |
| 13 | A01230-09-00 | OIL PUMP SPROCKET BUSHING | $2.50 | 1 |
| 14 | A02767-09-00 | RIGHT CRANKCASE HALF | $101.50 | 1 |
| 15 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 2 |
| 16 | A00122-13-00 | CENTER CASE GASKET | $15.80 | 1 |
| 18 | A03328-09-00 | CRANKCASE VENT HOSE | $10.50 | 1 |
| 19 | A00429-19-08 | CASE FLANGE BOLT M6X60 | $2.50 | 2 |
| 20 | A02576-09-00 | VENT HOSE CLAMP | $2.00 | 1 |
| 21 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $2.00 | 1 |
| 22 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 4 |
| 23 | A00002-26-00 | OIL SEAL 11.6X24X10 | $4.40 | 1 |
| 24 | A01100-09-00 | STATOR WIRE RETAINER | $2.00 | 1 |
| 25 | A03340-09-00 | LEFT CRANKCASE HALF - 2P | $108.50 | 1 |
| 26 | A00012-21-04 | CRUSH WASHER 12X20X1.5 | $2.00 | 1 |
| 27 | A01102-09-00 | OIL DRAIN BOLT M12 | $4.40 | 1 |
| 28 | A00128-19-04 | CYLINDER STUD B M6X196MM | $8.80 | 2 |
| 29 | A00491-19-04 | CYLINDER STUD A M6X202 | $8.80 | 2 |
| 30 | A01098-09-00 | OIL SCREEN | $10.50 | 1 |
