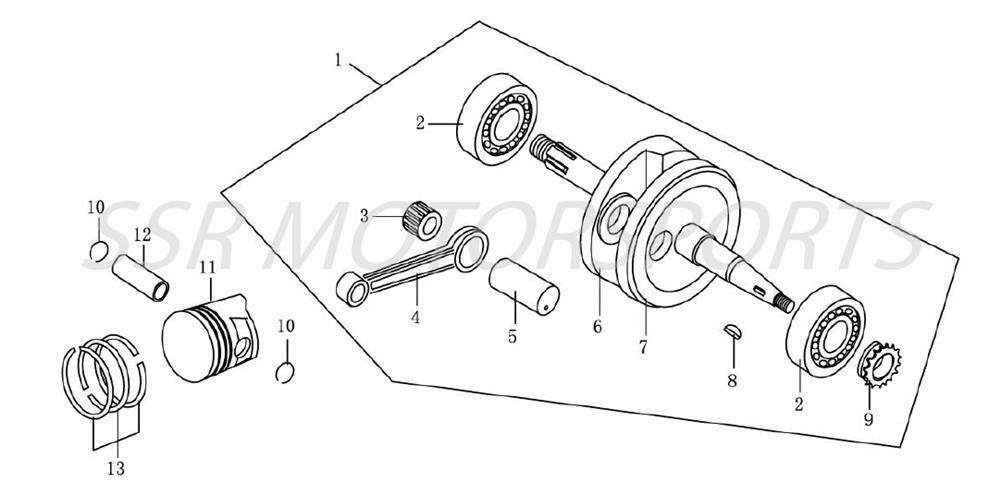

Crankshaft & Piston
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02774-09-00 | CRANKSHAFT ASSY SR110 | $117.30 | 1 |
| 2 | A02785-09-00 | BEARING SR110 | $12.30 | 2 |
| 3 | A02786-09-00 | BEARING SR110 | $8.80 | 1 |
| 4 | A02779-09-00 | CONNECTING ROD SR110 | $10.50 | 1 |
| 5 | A02782-09-00 | CRANKSHAFT PIN SR110 | $6.10 | 1 |
| 6 | A02780-09-00 | RIGHT CRANKSHAFT HALF SR110 | $38.50 | 1 |
| 7 | A02781-09-00 | LEFT CRANKSHAFT HALF SR110 | $38.50 | 1 |
| 8 | A01113-09-00 | WOODRUFF KEY 4X14X4 | $2.00 | 2 |
| 9 | A02783-09-00 | CAM CHAIN SPROCKET SR110 | $8.80 | 1 |
| 10 | A02778-09-00 | PISTON PIN CIRCLIP | $2.00 | 2 |
| 11 | A02776-09-00 | PISTON | $36.80 | 1 |
| 12 | A02777-09-00 | PISTON PIN | $6.10 | 1 |
| 13 | A02792-09-00 | PISTON RING SET | $36.80 | 1 |
