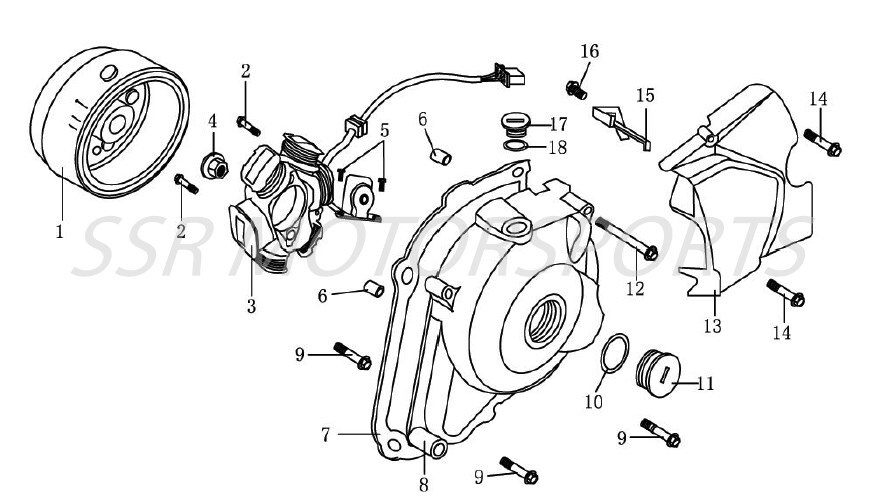

Left Engine Cover and Stator
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02513-09-00 | FLYWHEEL/STARTER CLUTCH | $75.30 | 1 |
| 2 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 3 | A02501-09-00 | STATOR (2P) | $101.50 | 1 |
| 3 | A02711-09-00 | STATOR PLATE ASSY BANGEN (3P) | $101.50 | 1 |
| 4 | A00005-22-08 | SPECIAL NUT M10X1.25 TALL FLANGE | $2.00 | 1 |
| 5 | A00032-19-03 | HEX BOLT M5X16 | $2.00 | 2 |
| 6 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 2 |
| 7 | A00244-13-00 | STATOR COVER GASKET | $10.50 | 1 |
| 8 | A01214-09-00 | STATOR COVER | $56.00 | 1 |
| 9 | A00424-19-08 | CASE FLANGE BOLT M6X32 (2P) | $2.00 | 4 |
| 9 | A00425-19-08 | CASE FLANGE BOLT M6X35 (3P) | $2.00 | 3 |
| 10 | A00055-27-00 | O-RING 27.4X2.4 | $2.00 | 1 |
| 11 | A02310-09-00 | CRANK INSPECTION PLUG | $15.80 | 1 |
| 12 | A00428-19-08 | CASE FLANGE BOLT M6X50 (3P ONLY) | $2.00 | 1 |
| 13 | A03327-09-00 | COUNTERSHAFT SPROCKET COVER | $26.30 | 1 |
| 14 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 2 |
| 15 | A02509-09-00 | STATOR WIRE CLAMP | $2.60 | 1 |
| 16 | A00445-19-08 | CASE FLANGE BOLT M6X12 | $2.00 | 1 |
| 17 | A02512-09-00 | TIMING PLUG | $4.40 | 1 |
| 18 | A00056-27-00 | O-RING 13.8X2.5 | $2.60 | 1 |
