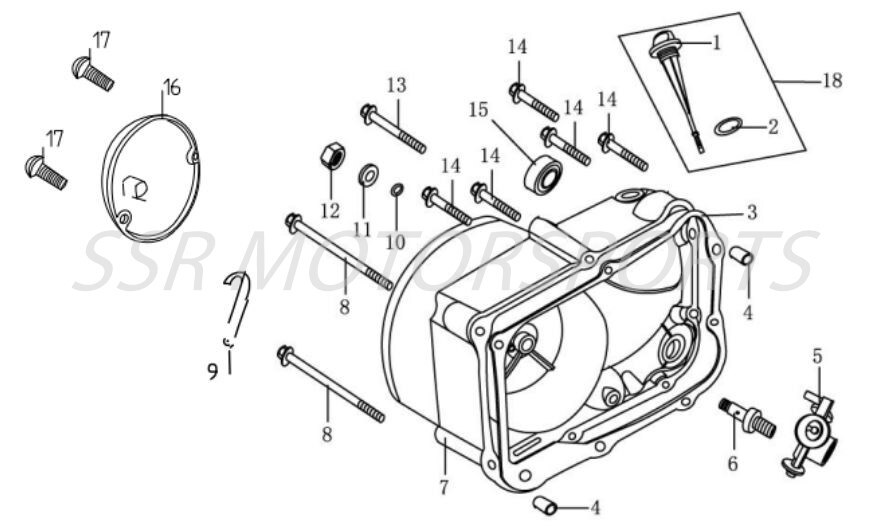

Right Engine Cover
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01311-09-00 | OIL LEVEL DIPSTICK | $8.80 | 1 |
| 2 | A00090-27-00 | O-RING 18X3 | $2.60 | 1 |
| 3 | A00120-13-00 | CLUTCH COVER GASKET | $15.80 | 1 |
| 4 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 2 |
| 5 | A03323-09-00 | CLUTCH LIFTER | $21.00 | 1 |
| 6 | A02331-09-00 | CLUTCH ADJUSTING BOLT | $6.10 | 1 |
| 8 | A00436-19-08 | CASE FLANGE BOLT M6X80 | $2.50 | 2 |
| 9 | A01310-09-00 | COIL WIRE RETAINER | $2.00 | 1 |
| 10 | A00019-27-00 | O-RING 8X2 | $2.00 | 1 |
| 11 | A00004-21-01 | WASHER M8 | $2.00 | 1 |
| 12 | A00002-22-01 | NUT M8 | $2.00 | 2 |
| 13 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 5 |
| 14 | A00426-19-08 | CASE FLANGE BOLT M6X40 | $2.00 | 2 |
| 15 | A00005-26-00 | OIL SEAL 13.7X24X5 | $6.10 | 1 |
| 16 | A03325-09-00 | CLUTCH ADJUSTMENT COVER | $24.50 | 1 |
| 17 | A00003-20-12 | CS PHILLIPS BOLT M6X16 | $2.00 | 2 |
| 18 | A03326-09-00 | DIPSTICK ASSY W/ O-RING | $10.50 | 1 |
