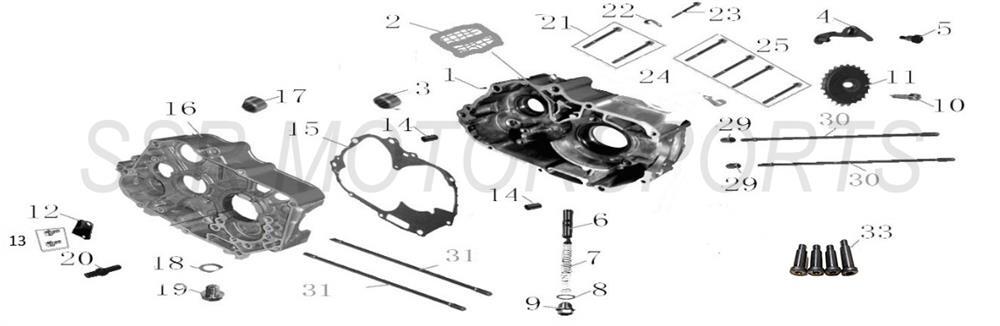

Crankcase
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01219-09-00 | RIGHT CRANKCASE HALF | $108.50 | 1 |
| 2 | A01098-09-00 | OIL SCREEN | $10.50 | 1 |
| 3 | A00005-28-00 | BEARING 6201 | $8.80 | 1 |
| 4 | A02444-09-00 | CAM CHAIN TENSIONER ARM | $8.80 | 1 |
| 5 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | $2.50 | 1 |
| 6 | A01323-09-00 | TENSIONER ROD | $8.00 | 1 |
| 7 | A01322-09-00 | TENSIONER SPRING M0.6X111.7 | $2.60 | 1 |
| 8 | A01307-09-00 | TENSIONER SEAL 14.2X20X1.5 | $2.00 | 1 |
| 9 | A02455-09-00 | TENSIONER BOLT M14X1.5 | $2.60 | 1 |
| 10 | A03054-09-00 | OIL PUMP GEAR BOLT | $4.40 | 1 |
| 11 | A01304-09-00 | GUIDE SPROCKET RUBBER | $10.50 | 1 |
| 12 | A01128-09-00 | RETAINER PLATE | $4.40 | 1 |
| 13 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 14 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 2 |
| 15 | A00122-13-00 | CENTER CASE GASKET | $15.80 | 1 |
| 16 | A01220-09-00 | LEFT CRANKCASE HALF | $140.00 | 1 |
| 17 | A00003-28-00 | BEARING 6001 | $8.80 | 1 |
| 18 | A00012-21-04 | CRUSH WASHER 12X20X1.5 | $2.00 | 1 |
| 19 | A01102-09-00 | OIL DRAIN BOLT M12 | $4.40 | 1 |
| 20 | A03053-09-00 | THREADED STUD | $4.40 | 1 |
| 21 | A00429-19-08 | CASE FLANGE BOLT M6X60 | $2.50 | 2 |
| 22 | A00099-24-02 | VENT HOSE CLAMP | $2.00 | 1 |
| 23 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 1 |
| 24 | A01099-09-00 | CRANKCASE VENT HOSE RETAINER | $2.00 | 1 |
| 25 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 4 |
| 28 | A00002-26-00 | OIL SEAL 11.6X24X10 | $4.40 | 1 |
| 29 | A00001-23-00 | DOWEL PIN M8X14 | $2.00 | 2 |
| 30 | A00003-19-04 | CYLINDER STUD A 202MM | $8.80 | 2 |
| 31 | A00002-19-04 | CYLINDER STUD B 197MM | $8.80 | 2 |
| 32 | A02356-09-00 | CRANKCASE VENT HOSE | $10.50 | 1 |
| 33 | A01270-09-00 | ENGINE MOUNT DAMPER SET 3 SHORT 1 LONG | $6.10 | 1 |
