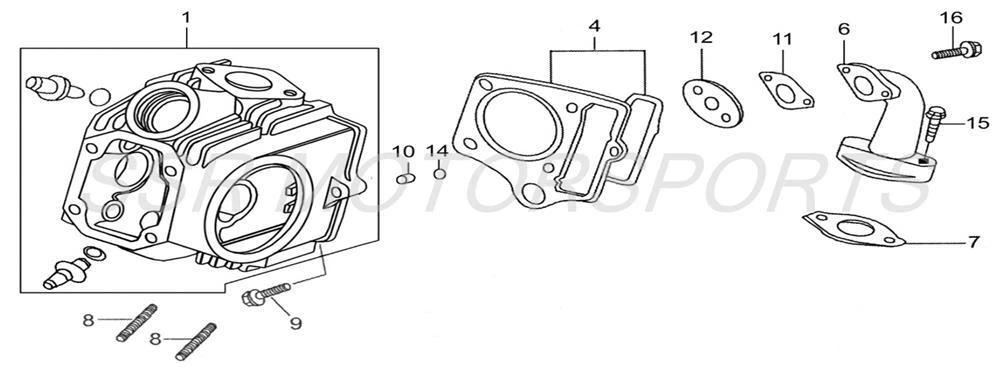

Cylinder Head
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01180-09-00 | CYLINDER HEAD ASSY W/ VALVES | $154.00 | 1 |
| 4 | A00288-13-00 | CYLINDER HEAD GASKET | $12.30 | 1 |
| 4 | A00113-13-00 | CYLINDER HEAD GASKET BANGEN (2015-2017 ONLY) | $12.30 | 1 |
| 6 | A00293-14-00 | INTAKE MANIFOLD YX-02 | $42.00 | 1 |
| 7 | A00292-14-00 | INTAKE MANIFOLD GASKET | $4.40 | 1 |
| 8 | A00001-19-04 | STUD M6X32 | $2.00 | 2 |
| 9 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS (2015-2017) | $2.00 | 1 |
| 9 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS (2018-2022) | $2.00 | 2 |
| 10 | A00118-23-00 | SPECIAL PIN 8X11 | $2.60 | 1 |
| 11 | A00274-13-00 | CARBURETOR GASKET | $4.40 | 1 |
| 12 | A00272-13-00 | INTAKE INSULATOR M4.7 | $6.10 | 1 |
| 14 | A00042-27-00 | O-RING 9X1.6 | $2.00 | 1 |
| 15 | A00040-19-01 | FLANGE BOLT M6X28 (2015-2017) | $2.00 | 2 |
| 15 | A00422-19-08 | CASE FLANGE BOLT M6X28 (2018-2022) | $2.00 | 2 |
| 16 | A00024-19-01 | FLANGE BOLT M6X22 | $2.00 | 2 |
