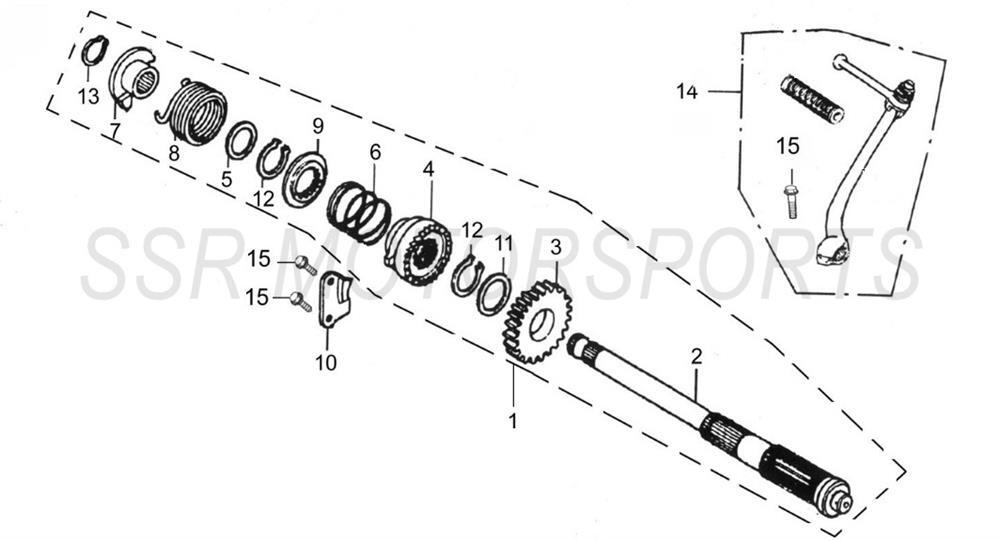

NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A01118-09-00 | KICKSTARTER SHAFT ASSY | 1 | Assy. | $51.00 | |
2 | A01120-09-00 | KICKSTARTER SHAFT | 1 | Pc. | $18.00 | |
3 | A01121-09-00 | KICKSTARTER GEAR | 1 | Pc. | $18.00 | |
4 | A01122-09-00 | RATCHET | 1 | Pc. | $13.00 | |
5 | A01123-09-00 | WASHER I | 1 | Pc. | $1.50 | |
6 | A01124-09-00 | RATCHET SPRING | 1 | Pc. | $2.00 | |
7 | A01125-09-00 | SPRING SEAT | 1 | Pc. | $4.00 | |
8 | A01126-09-00 | KICKSTARTER RETURN SPRING | 1 | Pc. | $2.50 | |
9 | A01127-09-00 | RATCHET SPRING SEAT | 1 | Pc. | $2.50 | |
10 | A01128-09-00 | RETAINER PLATE | 1 | Pc. | $4.00 | |
11 | A01129-09-00 | SHAFT WASHER II | 1 | Pc. | $1.50 | |
12 | A01130-09-00 | CIRCLIP | 2 | Pc. | $1.50 | |
13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
14 | A00321-05-00 | KICKSTARTER ASSY | 1 | Assy. | $23.00 | |
15 | A00047-19-03 | HEX BOLT | M6X20 | 3 | Pcs. | $1.50 |
