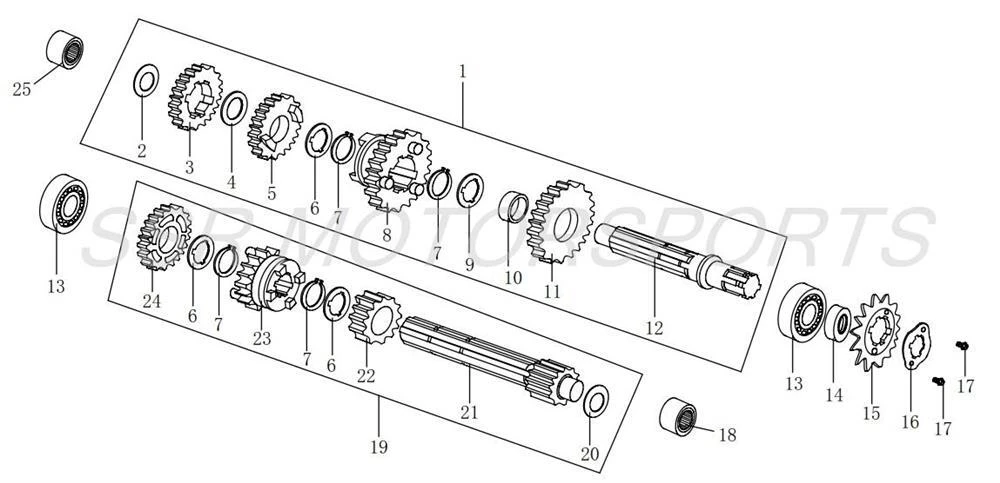

Transmission
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00221-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $77.00 | |
| 2 | A00217-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 3 | A00212-17-00 | COUNTERSHAFT 4TH GEAR | 24T | 1 | Pc. | $13.00 |
| 4 | A00215-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 5 | A00210-17-00 | COUNTERSHAFT 3RD GEAR | 23T | 1 | Pc. | $13.00 |
| 6 | A00218-17-00 | SPLINED WASHER | 3 | Pcs. | $2.00 | |
| 7 | A00220-17-00 | CIRCLIP | 4 | Pcs. | $1.50 | |
| 8 | A00208-17-00 | COUNTERSHAFT 2ND GEAR | 31T | 1 | Pc. | $13.00 |
| 9 | A00219-17-00 | SPLINED WASHER | 1 | Pc. | $2.00 | |
| 10 | A00206-17-00 | COUNTERSHAFT BUSHING | 1 | Pc. | $7.00 | |
| 11 | A00205-17-00 | COUNTERSHAFT 1ST GEAR | 36T | 1 | Pc. | $13.00 |
| 12 | A00204-17-00 | COUNTER SHAFT | 1 | Pc. | $51.00 | |
| 13 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 14 | A00001-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 15 | A00307-07-00 | COUNTERSHAFT SPROCKET | 14T | 1 | Pc. | $14.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 18 | A00108-28-00 | NEEDLE BEARING | NK14/2 | 1 | Pc. | $7.00 |
| 19 | A00232-17-00 | MAINSHAFT ASSY | 1 | Assy. | $77.00 | |
| 20 | A00216-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 21 | A00203-17-00 | MAINSHAFT | 11T | 1 | Pc. | $51.00 |
| 22 | A00207-17-00 | MAINSHAFT 2ND GEAR | 16T | 1 | Pc. | $13.00 |
| 23 | A00209-17-00 | MAINSHAFT 3RD GEAR | 17T | 1 | Pc. | $13.00 |
| 24 | A00211-17-00 | MAINSHAFT 4TH GEAR | 23T | 1 | Pc. | $13.00 |
| 25 | A00107-28-00 | NEEDLE BEARING | NK13.5/2 | 1 | Pc. | $7.00 |
