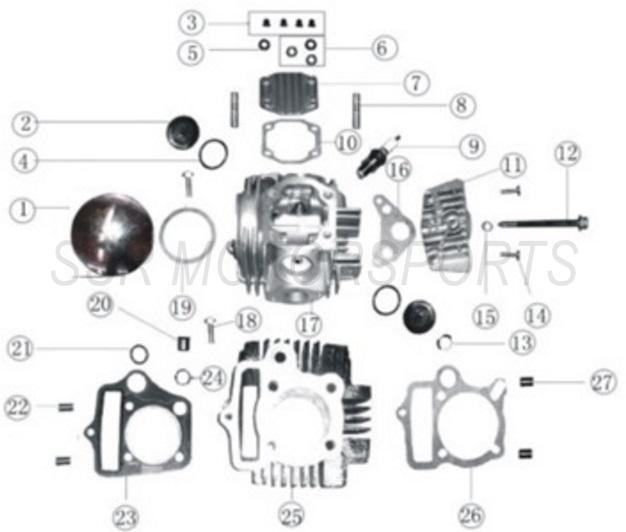

Cylinder Head
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01173-09-00 | LEFT CYLINDER HEAD COVER CHROME | $21.00 | 1 |
| 2 | A01174-09-00 | TAPPET COVER CHROME | $8.80 | 2 |
| 3 | A00328-22-36 | FLANGE CAP NUT M7 | $2.00 | 4 |
| 4 | A00004-27-00 | O-RING 30.8X3.2 | $3.50 | 2 |
| 5 | A00269-21-01 | COPPER WASHER M7 | $2.00 | 1 |
| 6 | A00008-21-01 | WASHER M7 | $2.00 | 3 |
| 7 | A01171-09-00 | CYLINDER HEAD COVER | $24.50 | 1 |
| 8 | A00001-19-04 | STUD M6X32 | $2.00 | 2 |
| 9 | D8EA | SPARK PLUG D8EA | $10.50 | 1 |
| 10 | A00110-13-00 | CYLINDER HEAD COVER GASKET | $8.80 | 1 |
| 11 | A01172-09-00 | RIGHT CYLINDER HEAD COVER | $21.00 | 1 |
| 12 | A00439-19-07 | TIMING COVER FLANGE BOLT M6x110 | $2.60 | 1 |
| 13 | A00009-27-00 | O-RING 11.5X2.5 | $2.00 | 1 |
| 14 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 15 | A01177-09-00 | ALUMINUM WASHER M6 | $2.00 | 1 |
| 16 | A00128-13-00 | SUPERSEDED TO : A00233-13-00 | $8.80 | 1 |
| 17 | A02765-09-00 | CYLINDER HEAD ASSY | $154.00 | 1 |
| 18 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS | $2.00 | 2 |
| 19 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | $8.80 | 1 |
| 20 | A00118-23-00 | SPECIAL PIN 8X11 | $2.60 | 1 |
| 21 | A00008-27-00 | O-RING 14.5X18.5X2.4 | $2.00 | 1 |
| 22 | A00001-23-00 | DOWEL PIN M8X14 | $2.00 | 2 |
| 23 | A00113-13-00 | CYLINDER HEAD GASKET BANGEN | $12.30 | 1 |
| 24 | A00042-27-00 | O-RING 9X1.6 | $2.00 | 1 |
| 25 | A01253-09-00 | CYLINDER | $117.30 | 1 |
| 26 | A00289-13-00 | CYLINDER BASE GASKET | $12.30 | 1 |
| 27 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 2 |
| 28 | A00336-14-00 | INTAKE MANIFOLD | $42.00 | 1 |
| 29 | A00292-14-00 | INTAKE MANIFOLD GASKET | $4.40 | 1 |
| 30 | A00272-13-00 | INTAKE INSULATOR M4.7 | $6.10 | 1 |
| 31 | A00274-13-00 | CARBURETOR GASKET | $4.40 | 1 |
