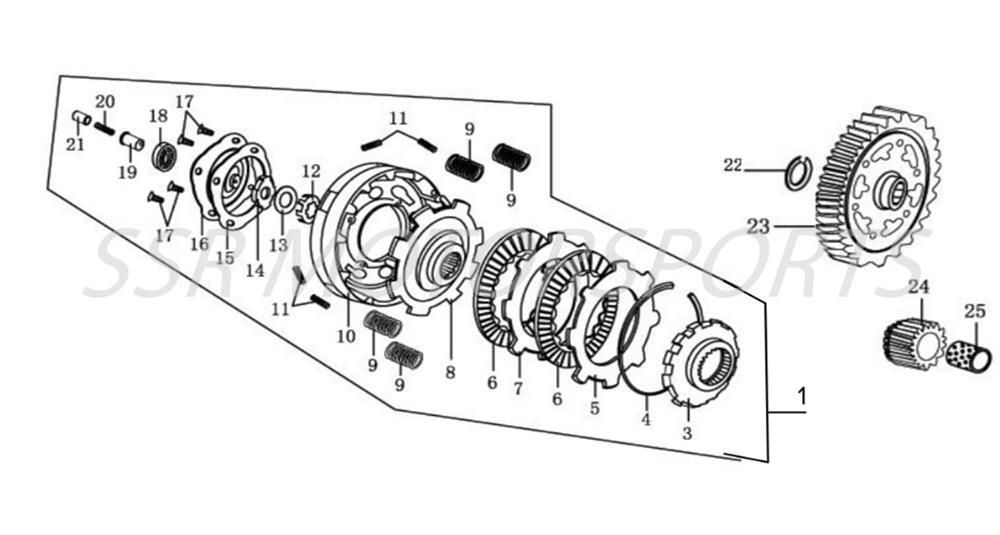

Clutch
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02714-09-00 | CLUTCH ASSY | $117.30 | 1 |
| 3 | A01319-09-00 | CLUTCH DRIVE OUTER GEAR | $24.50 | 1 |
| 4 | A02380-09-00 | CLUTCH SNAP RING | $6.10 | 1 |
| 6 | A01272-09-00 | CLUTCH FRICTION PLATE | $15.80 | 2 |
| 7 | A01273-09-00 | CLUTCH STEEL PLATE | $12.30 | 1 |
| 8 | A01275-09-00 | CLUTCH HOLDER | $31.50 | 1 |
| 9 | A01276-09-00 | CLUTCH SPRING | $2.50 | 4 |
| 10 | A01317-09-01 | CLUTCH HUB | $49.00 | 1 |
| 11 | A01277-09-00 | SPRING | $2.00 | 4 |
| 12 | A01283-09-00 | TONGUE WASHER | $2.60 | 1 |
| 13 | A01284-09-00 | DISHED WASHER | $2.00 | 1 |
| 14 | A01282-09-00 | SPLINED LOCKNUT | $2.60 | 1 |
| 15 | A00121-13-00 | LIFTER PLATE GASKET | $8.80 | 1 |
| 16 | A01318-09-00 | CLUTCH LIFTER PLATE | $19.30 | 1 |
| 17 | A00020-20-05 | CS SCREW M5X10 | $2.00 | 4 |
| 18 | A00009-28-00 | BEARING 6000 | $8.80 | 1 |
| 19 | A01281-09-00 | BUSHING | $2.50 | 1 |
| 20 | A01280-09-00 | SPRING | $2.00 | 1 |
| 21 | A01279-09-00 | COLLAR | $2.00 | 1 |
| 22 | A01285-09-00 | CIRCLIP | $2.00 | 1 |
| 23 | A01301-09-00 | GEAR 67T | $24.50 | 1 |
| 24 | A01302-09-00 | GEAR 18T | $19.30 | 1 |
| 25 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING | $6.10 | 1 |
