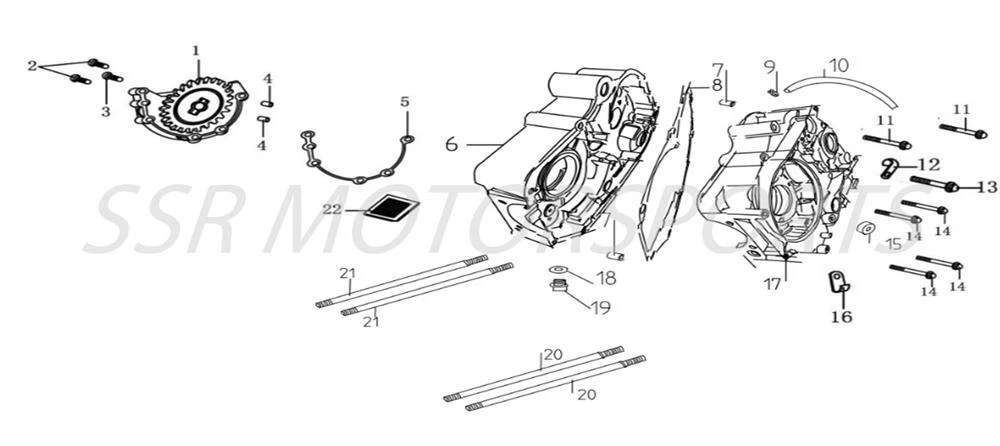

Crankcase & Oil Pump - 3P
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01221-09-00 | OIL PUMP ASSY | $49.00 | 1 |
| 2 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 2 |
| 3 | A00423-19-08 | CASE FLANGE BOLT M6X30 | $2.00 | 1 |
| 4 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 2 |
| 5 | A00123-13-00 | OIL PUMP GASKET | $6.10 | 1 |
| 7 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 2 |
| 10 | A03328-09-00 | CRANKCASE VENT HOSE | $10.50 | 1 |
| 11 | A00429-19-08 | CASE FLANGE BOLT M6X60 | $2.50 | 2 |
| 12 | A02576-09-00 | VENT HOSE CLAMP | $2.00 | 1 |
| 13 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $2.00 | 1 |
| 14 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 4 |
| 15 | A00002-26-00 | OIL SEAL | $4.40 | 1 |
| 16 | A01100-09-00 | STATOR WIRE RETAINER | $2.00 | 1 |
| 18 | A00012-21-04 | CRUSH WASHER | $2.00 | 1 |
| 19 | A01102-09-00 | OIL DRAIN BOLT | $4.40 | 1 |
| 20 | A00002-19-04 | CYLINDER STUD B | $8.80 | 2 |
| 21 | A00003-19-04 | CYLINDER STUD A | $8.80 | 2 |
| 22 | A01098-09-00 | OIL SCREEN | $10.50 | 1 |
