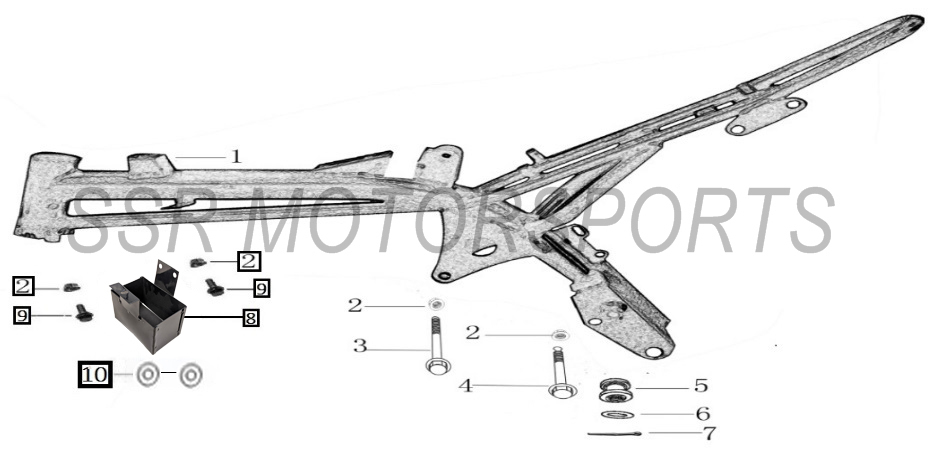

Frame
Click parts on table to add

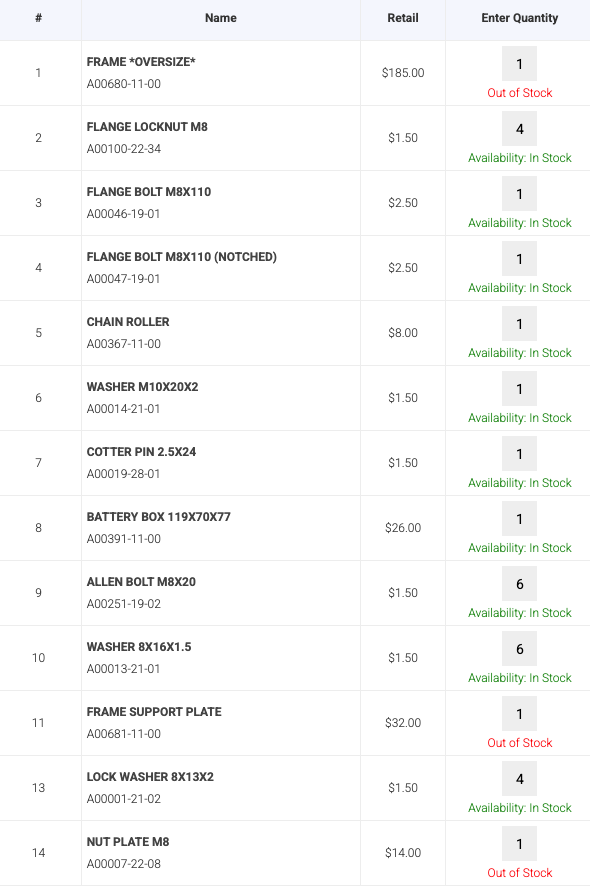

| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00680-11-00 | FRAME | $231.00 | 1 |
| 2 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 4 |
| 3 | A00046-19-01 | FLANGE BOLT M8X110 | $2.60 | 1 |
| 4 | A00047-19-01 | FLANGE BOLT M8X110 (NOTCHED) | $2.60 | 1 |
| 5 | A00367-11-00 | CHAIN ROLLER | $8.80 | 1 |
| 6 | A00014-21-01 | WASHER M10X20X2 | $2.00 | 1 |
| 7 | A00019-28-01 | COTTER PIN 2.5X24 | $2.00 | 1 |
| 8 | A00391-11-00 | BATTERY BOX | $29.80 | 1 |
| 9 | A00251-19-02 | ALLEN BOLT M8X20 | $2.00 | 6 |
| 10 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 6 |
| 11 | A00681-11-00 | FRAME SUPPORT PLATE | $36.80 | 1 |
| 13 | A00001-21-02 | LOCK WASHER | $2.00 | 4 |
| 14 | A00007-22-08 | NUT PLATE M8 | $15.80 | 1 |
