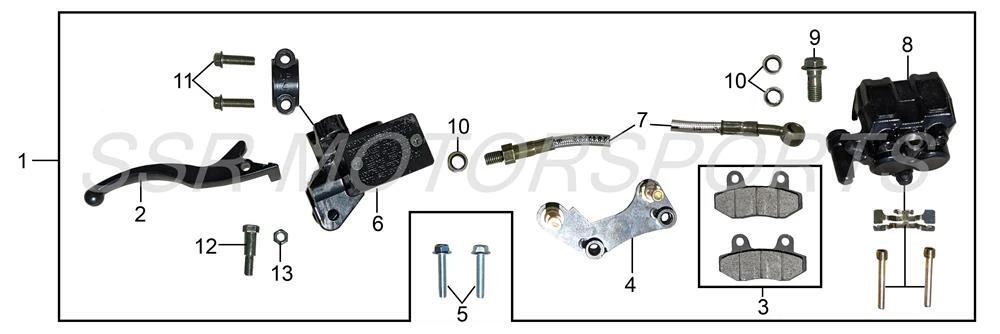

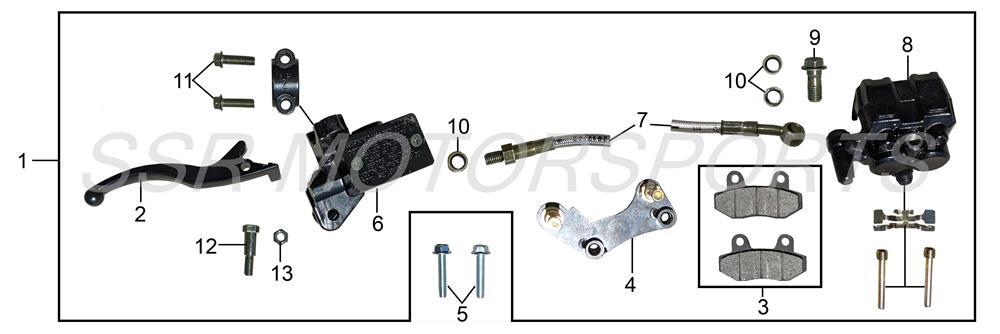

Front Brake System
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00788-04-00 | FRONT BRAKE ASSY L=1000MM | $98.00 | 1 |
| 2 | A00497-04-00 | FRONT BRAKE LEVER | $21.00 | 1 |
| 3 | A00499-04-00 | FRONT BRAKE PAD SET | $21.00 | 1 |
| 4 | A00498-04-00 | FRONT CALIPER BRACKET | $21.00 | 1 |
| 5 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 2 |
| 6 | A00571-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | $75.30 | 1 |
| 7 | A00797-04-00 | FRONT BRAKE HOSE L=1000MM | $21.00 | 1 |
| 8 | A00580-04-00 | FRONT BRAKE CALIPER ASSY | $91.00 | 1 |
| 9 | A00675-04-00 | BANJO BOLT M8 | $2.50 | 1 |
| 10 | A00676-04-00 | SEALING WASHER M8 | $2.00 | 3 |
| 11 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 12 | A00481-19-07 | LEVER PIVOT BOLT BLACK | $2.50 | 1 |
| 13 | A00005-22-X4 | LOCK NUT M6 BLACK | $2.00 | 1 |
