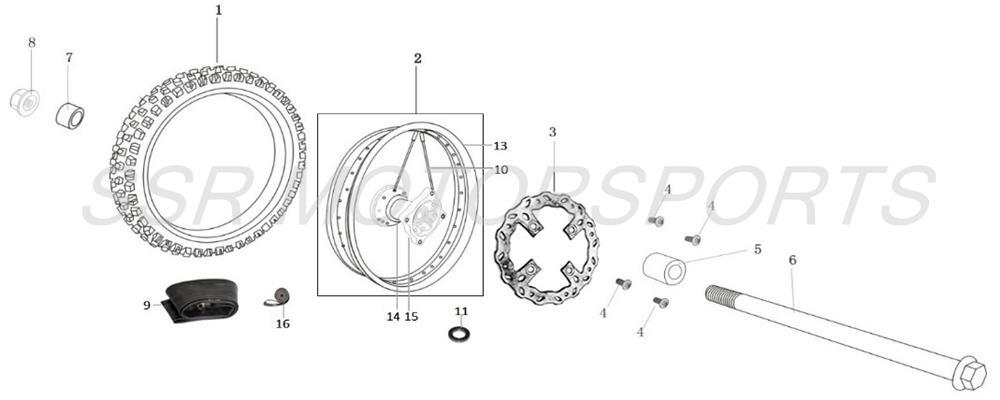

Front Wheel
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00527-18-00 | FRONT TIRE W/ TUBE + RIM STRIP | $49.00 | 1 |
| 2 | A00276-18-00 | FRONT WHEEL ASSY 1.40X14 32H | $99.00 | 1 |
| 3 | A00791-04-00 | FRONT BRAKE ROTOR 220 | $31.50 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN | $2.00 | 4 |
| 5 | A00665-18-00 | WHEEL SPACER | $5.30 | 1 |
| 6 | A00331-18-00 | FRONT WHEEL AXLE | $12.30 | 1 |
| 7 | A00664-18-00 | FRONT RIGHT WHEEL SPACER | $6.10 | 1 |
| 8 | A00001-22-03 | FLANGE LOCKNUT M12 | $2.50 | 1 |
| 9 | A00233-18-00 | INNER TUBE 60/100-14 | $21.00 | 1 |
| 10 | A00397-18-00 | FRONT SPOKE SET (32PCS) | $24.50 | 1 |
| 11 | A00075-28-00 | BEARING 6301-2RS | $6.10 | 2 |
| 13 | A00398-18-00 | FRONT RIM 1.4-14 | $49.00 | 1 |
| 14 | A00399-18-00 | FRONT WHEEL HUB | $85.80 | 1 |
| 16 | A00400-18-00 | RIM STRIP 14" | $6.10 | 1 |
