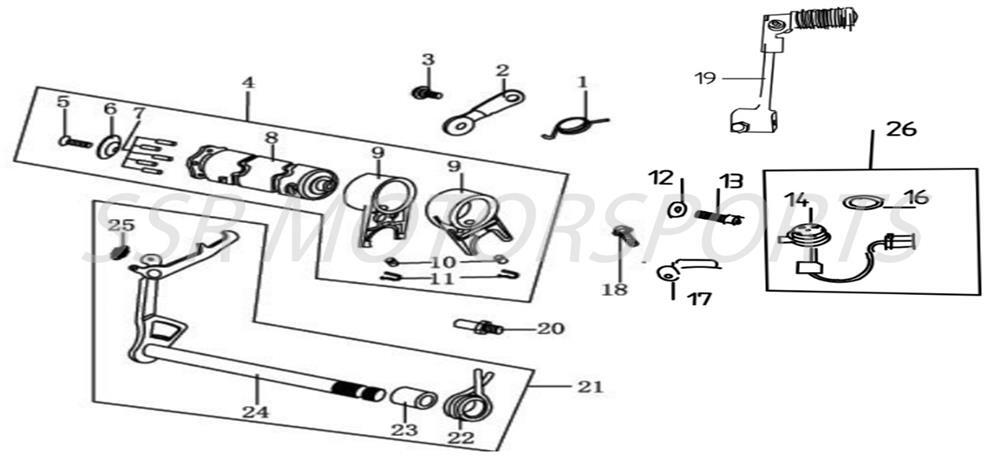

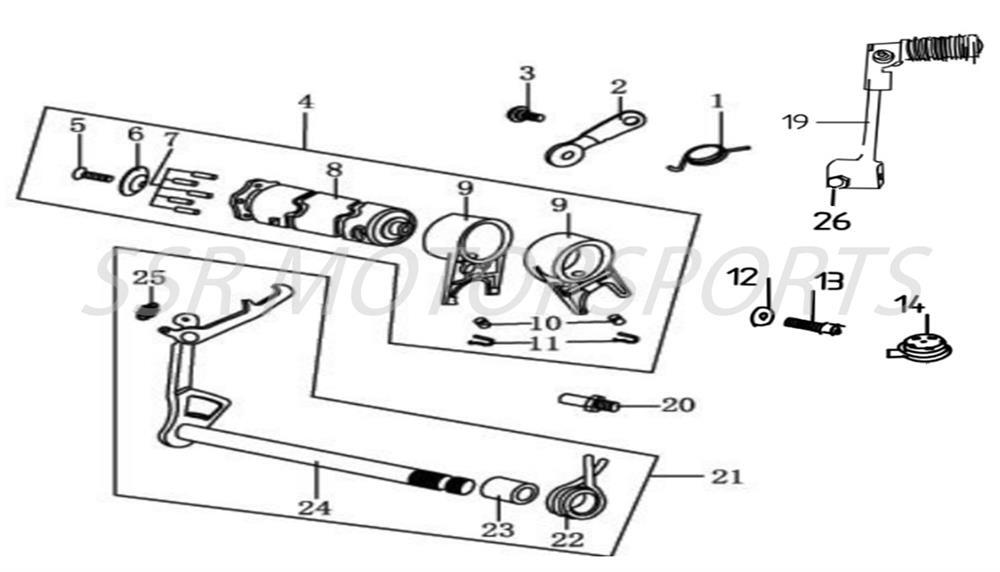

Gear Shift Drum
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01147-09-00 | TORSION SETTING PLATE SPRING | $2.00 | 1 |
| 2 | A01145-09-00 | GEAR SETTING ARM | $8.80 | 1 |
| 3 | A00002-19-06 | BOLT M6X22 | $2.00 | 1 |
| 4 | A01141-09-00 | GEARSHIFT DRUM ASSY | $68.30 | 1 |
| 5 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 6 | A01144-09-00 | GEAR PIN PLATE | $6.10 | 1 |
| 7 | A01143-09-00 | PIN M4X13 | $2.00 | 5 |
| 8 | A01142-09-00 | GEARSHIFT DRUM | $45.50 | 1 |
| 9 | A01148-09-00 | SHIFT FORK | $12.30 | 2 |
| 10 | A01149-09-00 | STRIKING PIN | $2.00 | 2 |
| 11 | A01150-09-00 | CLIP | $2.00 | 2 |
| 12 | A00011-21-01 | WASHER | $2.00 | 1 |
| 13 | A00006-20-01 | PHILLIPS BOLT M6X12 | $2.00 | 1 |
| 14 | A01151-09-00 | RUBBER PLUG | $2.60 | 1 |
| 19 | A00322-05-00 | GEARSHIFT LEVER ASSY | $28.00 | 1 |
| 20 | A01140-09-00 | RETURN SPRING STOPPER | $2.60 | 1 |
| 21 | A01132-09-00 | GEARSHIFT SHAFT ASSY | $75.30 | 1 |
| 22 | A01138-09-00 | GEARSHIFT SPRING | $2.50 | 1 |
| 23 | A01139-09-00 | SHAFT SLEEVE | $6.10 | 1 |
| 24 | A01133-09-00 | GEARSHIFT SHAFT | $72.50 | 1 |
| 25 | A01137-09-00 | SHIFTER ARM SPRING | $2.00 | 1 |
| 26 | A00022-19-03 | BOLT M6X30 | $2.00 | 1 |
