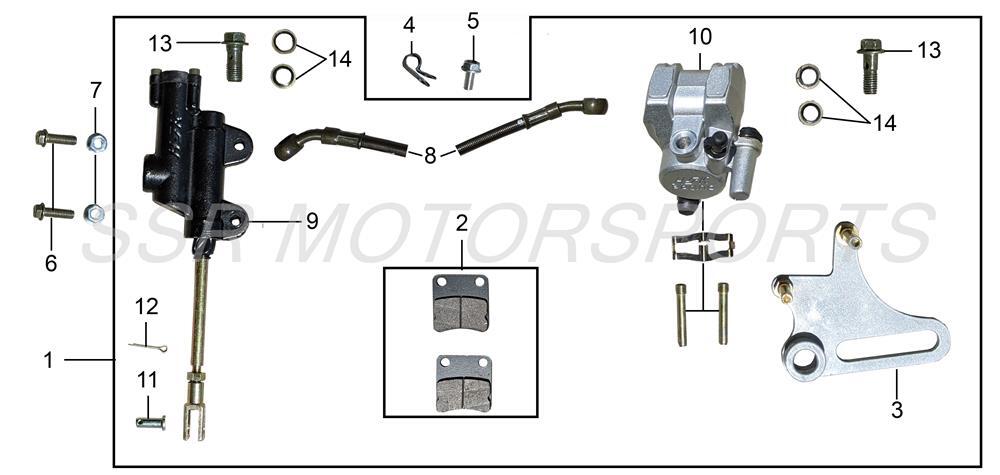

Rear Brake System
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00788-04-00 | BRAKE ASSY L=1000MM | $98.00 | 1 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET | $21.00 | 1 |
| 3 | A00502-04-00 | REAR CALIPER BRACKET | $26.30 | 1 |
| 4 | A00523-04-00 | BRAKE HOSE RETAINER | $2.50 | 2 |
| 5 | A00006-20-01 | PHILLIPS BOLT M6X12 | $2.00 | 1 |
| 6 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 2 |

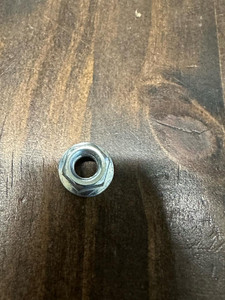

| 7 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
| 8 | A00580-04-00 | FRONT BRAKE CALIPER ASSY | $91.00 | 1 |
| 9 | A00585-04-00 | REAR MASTER CYLINDER ASSY | $91.00 | 1 |
| 10 | A00586-04-00 | REAR BRAKE CALIPER ASSY | $101.50 | 1 |
| 11 | A00417-04-00 | REAR BRAKE PIN | $2.00 | 1 |

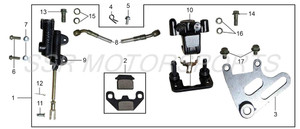

| 12 | A00007-25-01 | COTTER PIN 1.5X16 | $2.00 | 1 |
| 13 | A00675-04-00 | BANJO BOLT M8 | $2.50 | 2 |
| 14 | A00676-04-00 | SEALING WASHER M8 | $2.00 | 4 |
