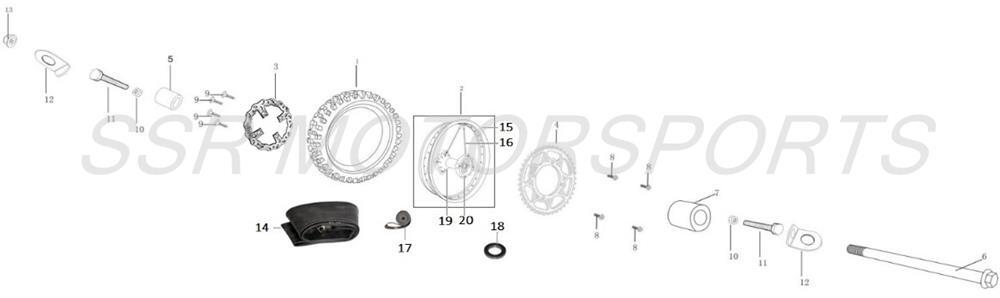

Rear Wheel
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00528-18-00 | REAR TIRE 80/100-12 | $42.00 | 1 |
| 2 | A00282-18-00 | REAR WHEEL ASSY | $99.00 | 1 |
| 3 | A00782-04-00 | BRAKE ROTOR 190 | $31.50 | 1 |
| 4 | A00310-07-00 | REAR SPROCKET 37T | $24.50 | 1 |
| 5 | A00283-18-00 | RIGHT WHEEL SPACER | $6.10 | 1 |
| 6 | A00284-18-00 | REAR AXLE | $12.30 | 1 |
| 7 | A00285-18-00 | LEFT WHEEL SPACER | $6.10 | 1 |
| 8 | A00007-19-01 | FLANGE BOLT M8X25 | $2.00 | 4 |
| 9 | A00034-19-10 | ROTOR BOLT M8X16 | $2.00 | 4 |
| 10 | A00002-22-01 | NUT M8 | $2.00 | 2 |
| 11 | A00286-18-00 | BOLT M8X40 | $2.50 | 2 |
| 12 | A00464-18-00 | CHAIN ADJUSTER PLATE | $6.10 | 2 |
| 13 | A00001-22-03 | FLANGE LOCKNUT M12 | $2.50 | 1 |
| 14 | A00291-18-00 | INNER TUBE | $21.00 | 1 |
| 16 | A00461-18-00 | SPOKE SET | $24.50 | 1 |
| 17 | A00292-18-00 | RIM STRIP | $6.10 | 1 |
| 18 | A00075-28-00 | BEARING | $6.10 | 2 |
| 20 | A00404-08-00 | REAR WHEEL HUB | $85.80 | 1 |
