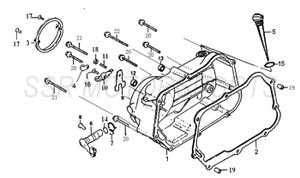

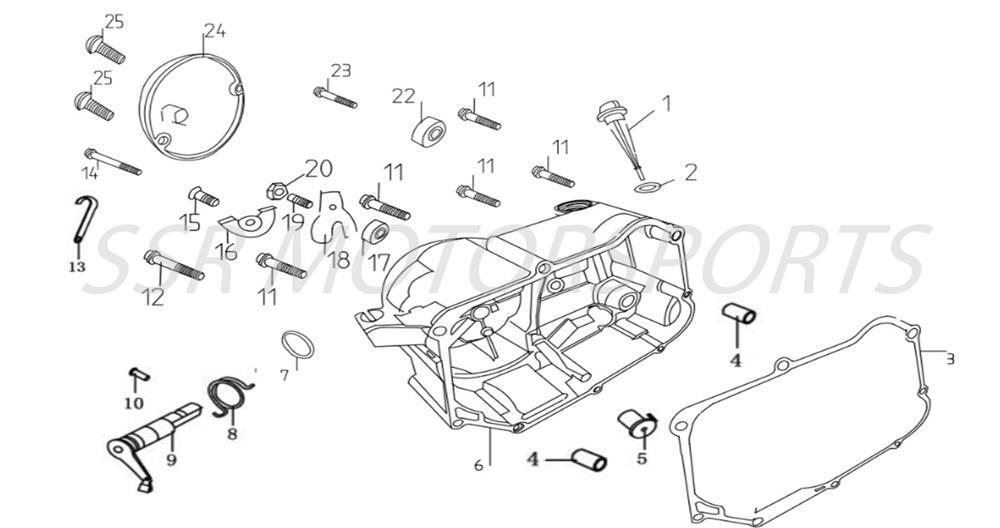

Right Engine Cover
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01311-09-00 | OIL LEVEL DIPSTICK | $8.80 | 1 |
| 2 | A00090-27-00 | O-RING 18X3 | $2.60 | 1 |
| 3 | A00120-13-00 | CLUTCH COVER GASKET | $15.80 | 1 |
| 4 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 2 |
| 5 | A01278-09-00 | CLUTCH PUSH ROD | $6.10 | 1 |
| 6 | A01308-09-00 | CLUTCH COVER | $101.50 | 1 |
| 7 | A00092-27-00 | O-RING 13.7X1.5 | $2.00 | 1 |
| 8 | A01313-09-00 | CLUTCH ACTUATOR SPRING | $2.00 | 1 |
| 9 | A01312-09-00 | CLUTCH ACTUATOR | $31.50 | 1 |
| 10 | A01314-09-00 | CLUTCH ACTUATOR PIN | $2.00 | 1 |
| 11 | A00426-19-08 | CASE FLANGE BOLT M6X40 | $2.00 | 5 |
| 12 | A00012-19-03 | CASE FLANGE BOLT M6X55 | $2.00 | 1 |
| 13 | A01310-09-00 | COIL WIRE RETAINER | $2.00 | 1 |
| 14 | A00432-19-08 | CASE FLANGE BOLT M6X85 | $2.50 | 1 |
| 15 | A00003-20-01 | SCREW M6X16 | $2.00 | 1 |
| 16 | A01316-09-00 | CLUTCH DETENT | $12.30 | 1 |
| 17 | A00081-26-00 | OIL SEAL 12X21X4 | $6.10 | 1 |
| 18 | A01315-09-00 | CLUTCH PRESSURE PLATE | $10.50 | 1 |
| 19 | A01317-09-00 | CLUTCH ACTUATOR SCREW | $2.00 | 1 |
| 20 | A00001-22-01 | NUT M6 | $2.00 | 1 |
| 22 | A00005-26-00 | OIL SEAL 13.7X24X5 | $6.10 | 1 |
| 23 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 1 |
| 24 | A03325-09-00 | CLUTCH ADJUSTMENT COVER | $24.50 | 1 |
| 25 | A00003-20-12 | CS PHILLIPS BOLT M6X16 | $2.00 | 2 |
Selected Parts
