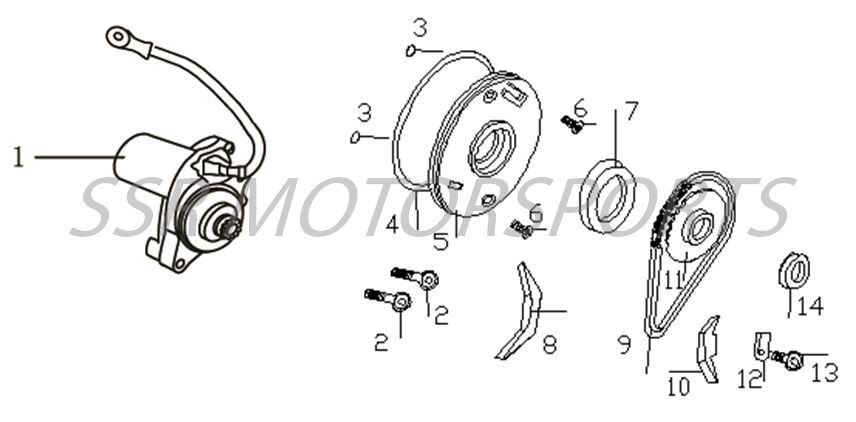

Starter Motor - 2P
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02510-09-00 | STARTER MOTOR ASSY | $101.50 | 1 |
| 2 | A00424-19-08 | CASE FLANGE BOLT M6X32 | $2.00 | 2 |
| 3 | A00060-27-00 | O-RING 5.8X1.9 | $2.00 | 2 |
| 4 | A00093-27-00 | O-RING 116.8X2 | $8.80 | 1 |
| 5 | A02432-09-00 | STATOR PLATE | $18.00 | 1 |
| 6 | A00286-19-03 | CS PHILLIPS BOLT M6X16 | $2.00 | 2 |
| 7 | A00059-26-00 | OIL SEAL 30X42X4.5 | $4.40 | 1 |
| 8 | A02433-09-00 | STARTER CHAIN SLIDER A | $4.40 | 1 |
| 9 | A02520-09-00 | STARTER CHAIN 62L | $12.30 | 1 |
| 10 | A02435-09-00 | STARTER CHAIN SLIDER B | $4.40 | 1 |
| 11 | A02436-09-00 | STARTER PINION GEAR | $26.30 | 1 |
| 12 | A03009-09-00 | RETAINING PLATE | $2.00 | 1 |
| 13 | A00445-19-08 | CASE FLANGE BOLT M6X12 | $2.00 | 1 |
| 14 | A00003-26-00 | OIL SEAL 18.9X30X5 | $4.40 | 1 |
