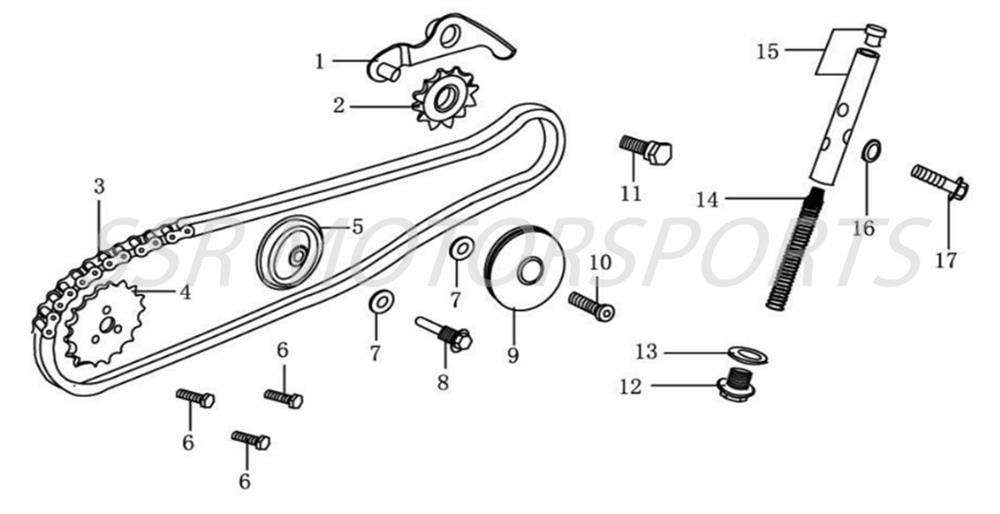

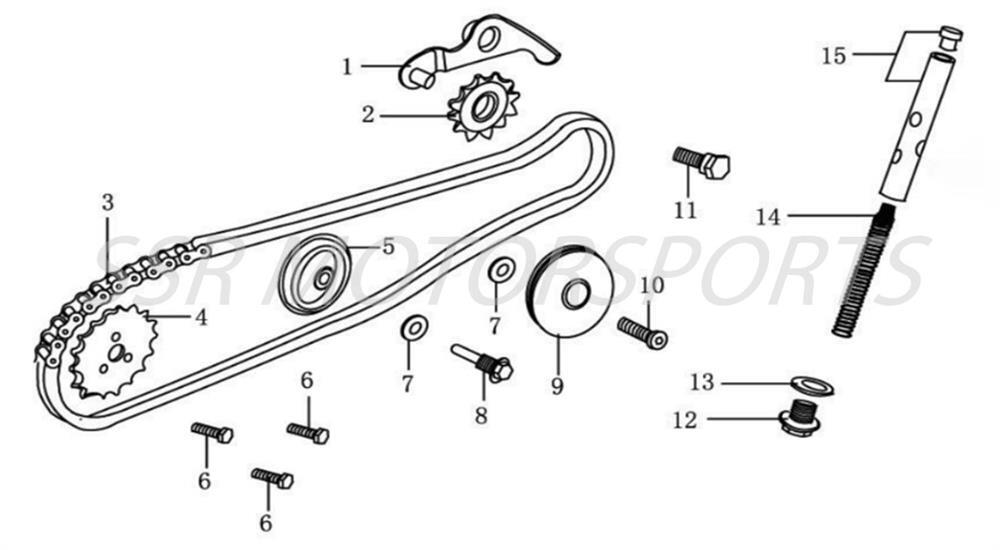

Timing Chain and Tensioner
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02444-09-00 | CAM CHAIN TENSIONER ARM | $8.80 | 1 |
| 2 | A01257-09-00 | TENSIONER ROLLER RUBBER | $10.50 | 1 |
| 3 | A01255-09-00 | TIMING CHAIN 84L | $35.00 | 1 |
| 4 | A01329-09-00 | CAMSHAFT SPROCKET 28T | $24.50 | 1 |
| 5 | A01300-09-00 | CHAIN ROLLER RUBBER | $15.80 | 1 |
| 6 | A00025-19-03 | HEX BOLT M5X12 | $2.00 | 3 |
| 7 | A00094-21-01 | WASHER | $2.00 | 1 |
| 8 | A01303-09-00 | ROLLER GUIDE BOLT | $2.00 | 1 |
| 9 | A03342-09-00 | GUIDE SPROCKET | $10.50 | 1 |
| 10 | A00090-19-02 | ALLEN BOLT M6X28 | $0.00 | 1 |
| 11 | A01321-09-00 | TENSIONER ARM BOLT | $2.50 | 1 |
| 12 | A02455-09-00 | TENSIONER BOLT | $2.60 | 1 |
| 13 | A01307-09-00 | TENSIONER SEAL | $2.00 | 1 |
| 14 | A01322-09-00 | TENSIONER SPRING | $2.60 | 1 |
| 15 | A03330-09-00 | TENSIONER ROD | $0.00 | 1 |
