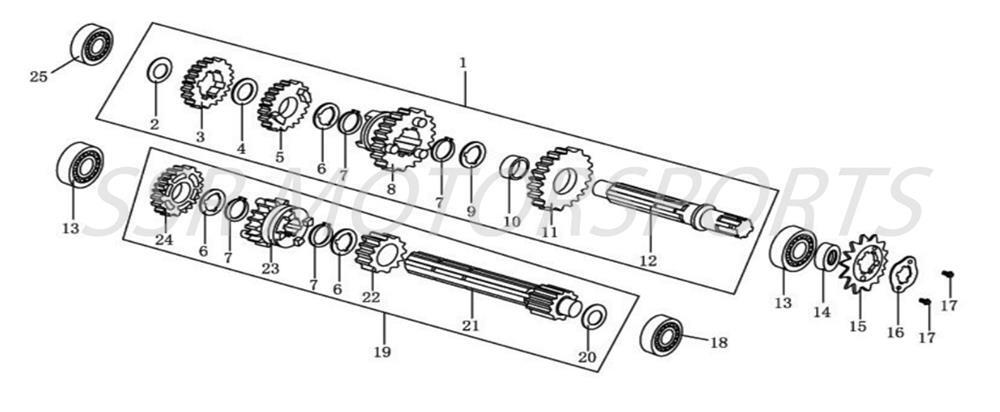

Transmission
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00221-17-00 | COUNTERSHAFT ASSY | $92.80 | 1 |
| 2 | A00217-17-00 | WASHER | $2.00 | 1 |
| 3 | A00212-17-00 | COUNTERSHAFT 4TH GEAR | $14.00 | 1 |
| 4 | A00215-17-00 | WASHER | $2.50 | 1 |
| 5 | A00210-17-00 | COUNTERSHAFT 3RD GEAR | $14.00 | 1 |
| 6 | A00218-17-00 | SPLINED WASHER | $2.50 | 3 |
| 7 | A00220-17-00 | CIRCLIP | $2.00 | 4 |
| 8 | A00208-17-00 | COUNTERSHAFT 2ND GEAR | $14.00 | 1 |
| 9 | A00219-17-00 | SPLINED WASHER | $2.50 | 1 |
| 10 | A00206-17-00 | COUNTERSHAFT BUSHING | $8.00 | 1 |
| 11 | A00205-17-00 | COUNTERSHAFT 1ST GEAR | $14.00 | 1 |
| 12 | A00204-17-00 | COUNTERSHAFT | $59.50 | 1 |
| 13 | A00008-28-00 | BEARING 6203 | $31.50 | 2 |
| 14 | A00001-26-00 | OIL SEAL | $4.40 | 1 |
| 15 | A00307-07-00 | COUNTERSHAFT SPROCKET | $15.80 | 1 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | $4.40 | 1 |
| 17 | A00031-19-03 | BOLT M6X8 | $2.00 | 2 |
| 18 | A00003-28-00 | BEARING 6001 | $8.80 | 1 |
| 19 | A00232-17-00 | MAINSHAFT ASSY | $92.80 | 1 |
| 20 | A00216-17-00 | WASHER | $2.00 | 1 |
| 21 | A00203-17-00 | MAINSHAFT | $59.50 | 1 |
| 22 | A00207-17-00 | MAINSHAFT 2ND GEAR | $14.00 | 1 |
| 23 | A00209-17-00 | MAINSHAFT 3RD GEAR | $14.00 | 1 |
| 24 | A00211-17-00 | MAINSHAFT 4TH GEAR | $14.00 | 1 |
| 25 | A00005-28-00 | BEARING 6201 | $8.80 | 1 |
Selected Parts
