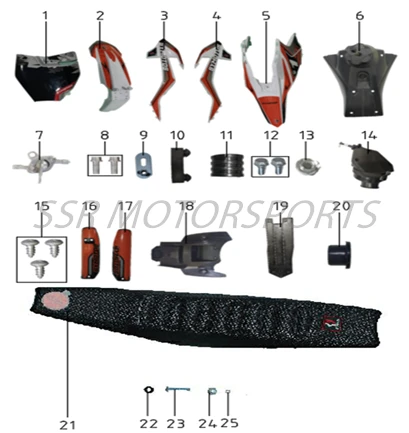

| BODY |
 |
| NO. |
PART NUMBER |
DESCRIPTION |
SPECIFICATION |
QTY. |
UNIT |
RETAIL |
| 1 |
A01118-02-01 |
FRONT NUMBER PLATE |
WHITE |
1 |
Pc. |
$14.00 |
| 2 |
A01119-02-01 |
FRONT FENDER |
WHITE |
1 |
Pc. |
$18.00 |
| 3 |
A01120-02-01 |
LEFT RADIATOR SHROUD |
WHITE |
1 |
Pc. |
$18.00 |
| 4 |
A01121-02-01 |
RIGHT RADIATOR SHROUD |
WHITE |
1 |
Pc. |
$18.00 |
| 5 |
A01122-02-01 |
REAR FENDER |
WHITE |
1 |
Pc. |
$18.00 |
| 6 |
A00471-12-00 |
FUEL TANK |
|
1 |
Pc. |
$56.00 |
| 6-1 |
A00472-12-00 |
FUEL TANK CAP |
|
1 |
Pc. |
$14.00 |
| 7 |
A00338-12-00 |
FUEL PETCOCK |
|
1 |
Pc. |
$23.00 |
| 8 |
A00001-19-19 |
BUTTON HEAD ALLEN BOLT |
M6X8 |
8 |
Pcs. |
$1.50 |
| 9 |
A01123-02-00 |
FRONT NUMBER PLATE BRACKET |
|
1 |
Pc. |
$10.00 |
| 10 |
A00473-12-00 |
FUEL TANK DAMPER RECTANGULAR |
|
1 |
Pc. |
$2.50 |
| 11 |
A00474-12-00 |
FUEL TANK DAMPER SEMICIRCULAR |
|
1 |
Pc. |
$2.50 |
| 12 |
A00002-19-01 |
FLANGE BOLT |
M6X16 |
2 |
Pcs. |
$1.50 |
| 13 |
A00001-22-04 |
FLANGE LOCKNUT |
M8 |
1 |
Pc. |
$1.50 |
| 14 |
A00370-14-00 |
AIRBOX |
W/ EVAP HOSES |
1 |
Pc. |
$14.00 |
| 14-1 |
A00371-14-00 |
AIR FILTER ELEMENT |
|
1 |
Pc. |
#N/A |
| 15 |
A00002-19-01 |
FLANGE BOLT |
M6X16 |
3 |
Pcs. |
$1.50 |
| 16 |
A01112-02-02 |
LEFT FRONT FORK GUARD |
BLACK |
1 |
Pc. |
$14.00 |
| 16-1 |
A00010-20-03 |
ST SCREW |
ST4.2X16 |
2 |
Pcs. |
$1.50 |
| 17 |
A01113-02-02 |
RIGHT FRONT FORK GUARD |
BLACK |
1 |
Pc. |
$14.00 |
| 18 |
A01116-02-02 |
REAR INNER FENDER |
BLACK |
1 |
Pc. |
$13.00 |
| 19 |
A01117-02-02 |
MUDFLAP |
BLACK |
1 |
Pc. |
$5.00 |
| 20 |
A01158-02-00 |
LOWER FUEL TANK MOUNTING DAMPER |
9X26.6X20X15 |
1 |
Pc. |
$2.00 |
| 21 |
A01111-02-00 |
SEAT |
|
1 |
Pc. |
$63.00 |
| 22 |
A00002-21-07 |
RUBBER WASHER |
M10X18XH7 |
1 |
Pc. |
$1.50 |
| 23 |
A00002-19-19 |
PAN HEAD ALLEN BOLT |
M6X40 |
1 |
Pc. |
$1.50 |
| 24 |
A01157-02-00 |
COLLAR |
M6X18X1.5 |
1 |
Pc. |
$1.50 |
| 25 |
A00001-19-19 |
BUTTON HEAD ALLEN BOLT |
M6X8 SS |
8 |
Pcs. |
$1.50 |
| 26 |
A00675-11-00 |
AIRBOX MOUNTING BRACKET |
RED |
1 |
Pc. |
#N/A |
| 27 |
|
FUEL HOSE SPRING? |
9X11XL130 |
3 |
Pcs. |
#N/A |
| 28 |
|
COLLAR |
7X9XH11+20*T2 |
1 |
Pc. |
#N/A |
| 29 |
|
SPRING HOSE CLAMP |
12 |
1 |
Pc. |
#N/A |
| 30 |
A00003-19-19 |
BUTTON HEAD ALLEN BOLT |
M6X12 |
1 |
Pc. |
$1.50 |
