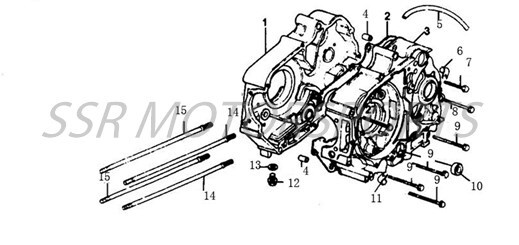

Crankcase
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A03288-09-00 | RIGHT CRANKCASE HALF W127 | $157.50 | 1 |
| 2 | A00330-13-00 | CRANKCASE GASKET | $17.50 | 1 |
| 3 | A03300-09-00 | LEFT CRANKCASE HALF X150 | $187.30 | 1 |
| 4 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 1 |
| 5 | A03301-09-00 | CRANKCASE VENT HOSE M7X11X190 | $10.50 | 1 |
| 5-1 | A00385-14-00 | SPRING HOSE CLAMP M12 | $2.00 | 1 |
| 6 | A01685-09-00 | HOSE RETAINER | $2.00 | 1 |
| 7 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $2.00 | 1 |
| 8 | A00429-19-08 | CASE FLANGE BOLT M6X60 | $2.50 | 2 |
| 9 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 3 |
| 10 | A00002-26-00 | OIL SEAL 11.6X24X10 | $4.40 | 1 |
| 11 | A01100-09-00 | STATOR WIRE RETAINER | $2.00 | 1 |
| 12 | A01102-09-00 | OIL DRAIN BOLT M12 | $4.40 | 1 |
| 13 | A00012-21-04 | CRUSH WASHER 12X20X1.5 | $2.00 | 1 |
| 14 | A00020-19-04 | CYLINDER STUD A M7X203MM | $12.30 | 2 |
| 15 | A00027-19-04 | CYLINDER STUD B M7X195MM | $12.30 | 2 |
