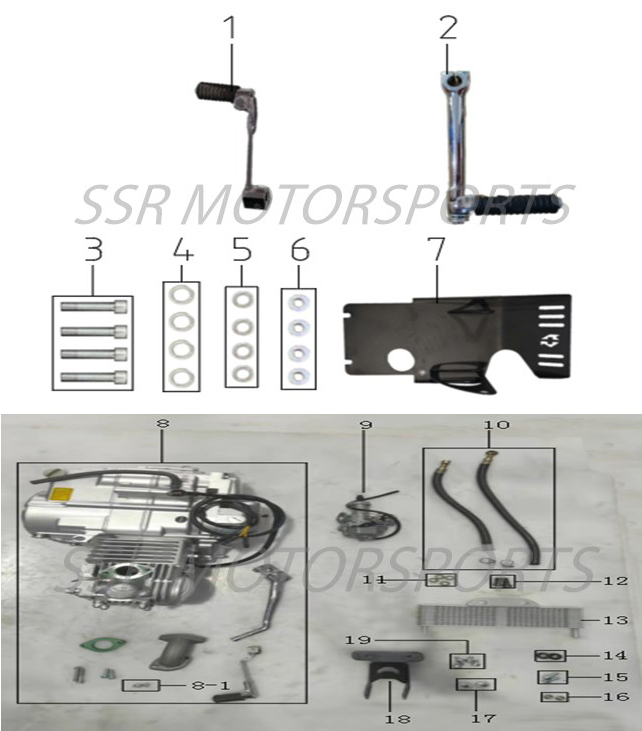

Engine Assembly
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00322-05-00 | GEARSHIFT LEVER ASSY | $28.00 | 1 |
| 2 | A00321-05-00 | KICKSTARTER LEVER ASSY THICK | $26.30 | 1 |
| 3 | A00007-19-02 | ALLEN BOLT M8X40 | $2.00 | 4 |
| 4 | A00005-21-02 | LOCK WASHER M8 | $2.00 | 4 |
| 5 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 4 |
| 6 | A00657-11-00 | SPACER M8X20XL16 | $2.60 | 4 |
| 7 | A00655-11-00 | SKID PLATE V1S STEEL | $49.00 | 1 |
| 8 | A03055-09-00 | ENGINE ASSY | $358.00 | 1 |
| 8-1 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
| 9 | A00469-12-00 | CARBURETOR ASSY | $79.00 | 1 |
| 10 | A00113-06-00 | OIL COOLER HOSE | $19.30 | 1 |
| 11 | A00549-04-00 | SEALING WASHER M10 | $2.00 | 2 |
| 12 | A00109-06-00 | BANJO BOLT M10X25 | $19.30 | 2 |
| 13 | A00110-06-00 | OIL COOLER | $52.50 | 1 |
| 14 | A00002-21-07 | RUBBER WASHER | $2.00 | 2 |
| 15 | A00006-19-01 | FLANGE BOLT M6X20 | $2.00 | 2 |
| 16 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 2 |
| 17 | A00112-06-00 | COLLAR | $2.00 | 2 |
| 18 | A00111-06-00 | OIL COOLER BRACKET | $5.30 | 1 |
| 19 | A00008-19-03 | FLANGE BOLT M6X12 | $2.00 | 4 |
