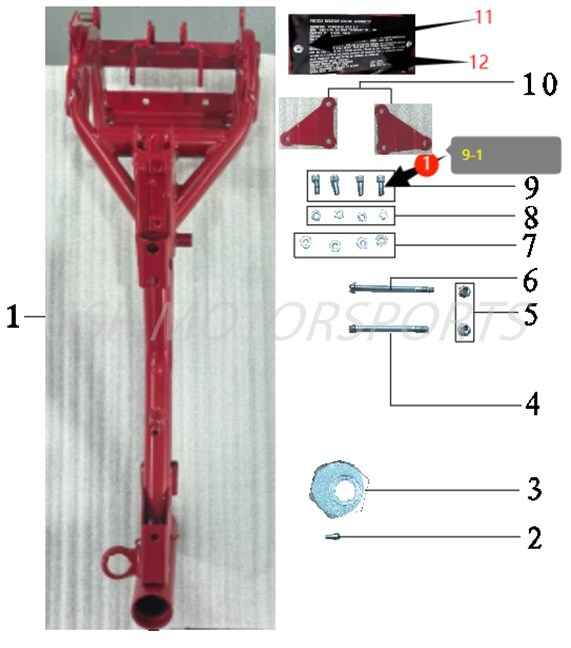

Frame
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00656-11-00 | FRAME RED | $231.00 | 1 |
| 2 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 1 |
| 3 | A00635-05-00 | BRAKE PEDAL STOPPER | $3.50 | 1 |
| 4 | A00044-19-01 | FLANGE BOLT M8X105 | $2.60 | 1 |
| 5 | A00001-22-04 | FLANGE LOCKNUT M8 | $2.00 | 2 |
| 6 | A00407-19-01 | FLANGE BOLT M8X120 | $3.50 | 1 |
| 7 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 4 |
| 8 | A00001-21-02 | LOCK WASHER 8X13X2 | $2.00 | 4 |
| 9 | A00015-19-01 | FLANGE BOLT M8X20 S12 | $2.00 | 3 |
| 9-1 | A00249-19-02 | ALLEN BOLT M8X25 | $2.00 | 1 |
| 10 | A00644-11-00 | UPPER ENGINE MOUNTING BRACKETS RED | $10.50 | 1 |
