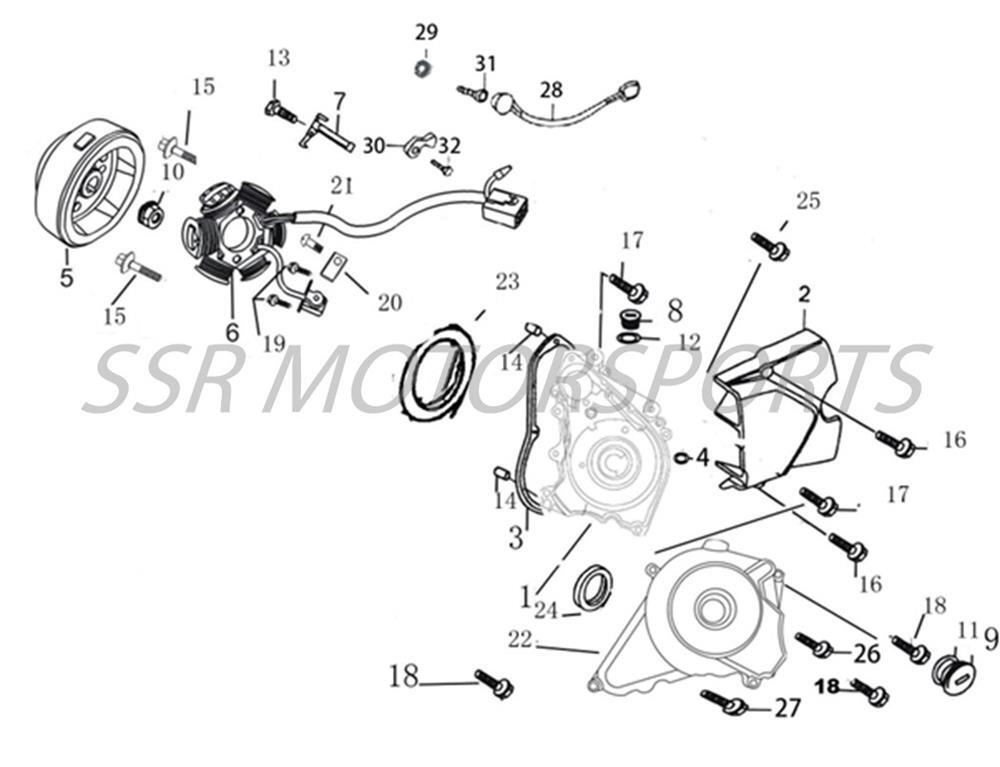

Left Crankcase Cover & Electrical
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02504-09-00 | STARTER MOTOR BRACKET | $31.50 | 1 |
| 2 | A03307-09-00 | COUNTERSHAFT SPROCKET COVER | $29.80 | 1 |
| 3 | A00244-13-00 | STATOR COVER GASKET | $10.50 | 1 |
| 4 | A00043-27-00 | O-RING 7.5X1.8 | $2.00 | 1 |
| 5 | A03308-09-00 | FLYWHEEL / STARTER CLUTCH | $75.30 | 1 |
| 6 | A03309-09-00 | STATOR ASSY | $101.50 | 1 |
| 7 | A02509-09-00 | STATOR WIRE CLAMP | $2.60 | 1 |
| 8 | A03295-09-00 | TIMING PLUG MATTE | $4.40 | 1 |
| 9 | A03296-09-00 | CRANK INSPECTION PLUG MATTE | $15.80 | 1 |
| 10 | A00004-22-08 | SPECIAL NUT M10X1.25 | $2.00 | 1 |
| 11 | A00055-27-00 | O-RING 27.4X2.4 | $2.00 | 1 |
| 12 | A00056-27-00 | O-RING 13.8X2.5 | $2.60 | 1 |
| 13 | A00025-19-01 | FLANGE BOLT M6X14 | $2.00 | 1 |
| 14 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 3 |
| 15 | A00420-19-08 | CASE FLANGE BOLT M6X22 | $2.00 | 2 |
| 16 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 2 |
| 17 | A00064-19-01 | FLANGE BOLT M6X32 | $2.00 | 3 |
| 18 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 1 |
| 19 | A00065-19-01 | HEX BOLT M5X12 | $2.00 | 2 |
| 20 | A00033-24-03 | WIRE CLAMP | $2.00 | 1 |
| 21 | A00121-19-01 | BOLT M5X6 | $2.00 | 2 |
| 22 | A03310-09-00 | STATOR COVER | $56.00 | 1 |
| 23 | A00010-27-00 | O-RING 107X2 | $8.80 | 1 |
| 24 | A00059-26-00 | OIL SEAL 30X42X4.5 | $4.40 | 1 |
| 25 | A00437-19-08 | CASE FLANGE BOLT M6X105 | $2.50 | 1 |
| 26 | A00421-19-08 | CASE FLANGE BOLT M6X25 | $2.00 | 1 |
| 27 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $2.00 | 1 |
| 28 | A02920-09-00 | RUBBER PLUG | $4.40 | 1 |
| 29 | A00073-21-01 | WASHER 6X17X2 | $2.00 | 1 |
| 31 | A00453-19-03 | HEX BOLT M6X16 | $4.40 | 1 |
| 32 | A00445-19-08 | CASE FLANGE BOLT M6X12 | $2.00 | 1 |
