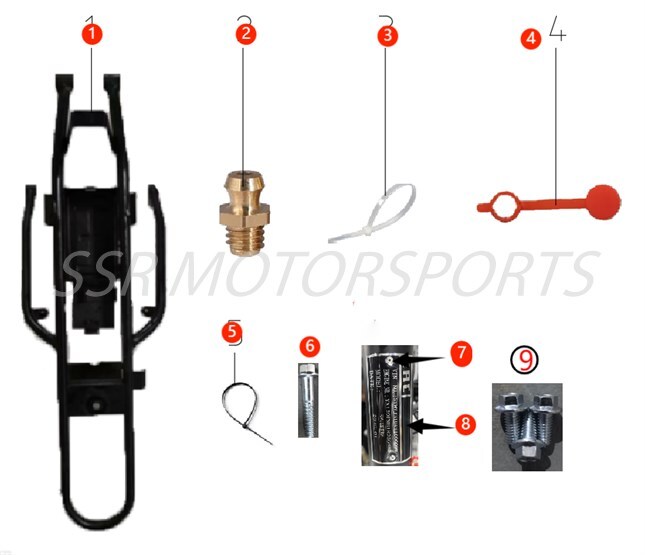

Rear Subframe
| REAR SUBFRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00652-11-00 | SUBFRAME ASSY | 1 | Pc. | $63.00 | |
| 2 | A00653-11-00 | GREASE FITTING | M6X14 | 1 | Pc. | $5.00 |
| 3 | A00005-24-01 | ZIP TIE | 8X350 | 18 | Pcs. | $1.50 |
| 4 | A00654-11-00 | GREASE CAP | 1 | Pc. | $1.50 | |
| 5 | A00008-24-01 | ZIP TIE | 4X250 | 3 | Pcs. | $2.00 |
| 6 | A00049-19-01 | FLANGE BOLT | M8X35 | 2 | Pcs. | $2.00 |
| 7 | RIVIT | 4X12 | 2 | Pcs. | #N/A | |
| 8 | FRAME PLATE | 1 | Pc. | #N/A | ||
| 9 | A00008-19-03 | FLANGE BOLT | M6X12 | 3 | Pcs. | $1.50 |
