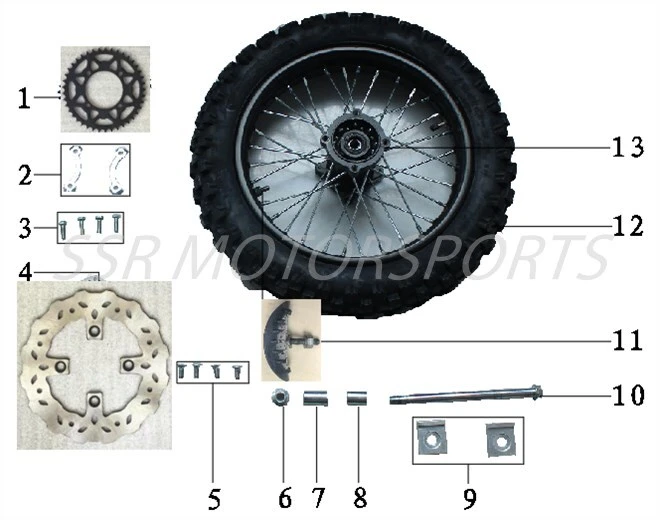

Rear Wheel
| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00244-07-00 | REAR SPROCKET | 41T | 1 | Pc. | $39.00 |
| 2 | A00296-07-00 | SPROCKET BOLT RETAINER PLATE | 2 | Pcs. | $8.00 | |
| 3 | A00007-19-11 | FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 4 | A00771-04-00 | REAR BRAKE ROTOR | Φ76X190XH3.5 | 1 | Pc. | $36.00 |
| 5 | A00034-19-10 | ROTOR BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 6 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 7 | A00227-18-00 | REAR LEFT WHEEL SPACER | M15X22XL28 | 1 | Pc. | $4.00 |
| 8 | A00659-18-00 | REAR RIGHT WHEEL SPACER | M15X22XL31 | 1 | Pc. | $6.00 |
| 9 | A00660-18-00 | CHAIN ADJUSTER BRACKET | 2 | Pcs. | $7.00 | |
| 10 | A00672-18-00 | REAR WHEEL AXLE | M15X215X14X1.5 10.9 | 1 | Pc. | $33.00 |
| 11 | A00352-18-00 | RIM LOCK | 1.85 | 1 | Pc. | $8.00 |
| 12 | A00562-18-00 | REAR TIRE/TUBE/RIM STRIP | 80/100-12 | 1 | Set | $56.00 |
| 13 | A00282-18-00 | REAR WHEEL ASSY | 1.85-12 | 1 | Assy. | $98.00 |
