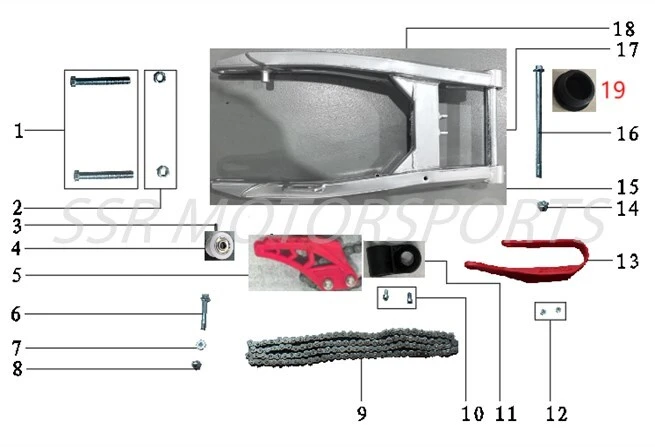

Swingarm
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 1 |
| 2 | A00003-22-03 | FLANGE LOCKNUT M8 | $2.00 | 1 |
| 3 | A00007-28-00 | BALL BEARING M8X22XH7 | $4.40 | 2 |
| 4 | A00645-11-00 | CHAIN ROLLER WHITE | $8.80 | 1 |
| 5 | A00646-11-00 | LOWER CHAIN GUIDE | $10.50 | 1 |
| 6 | A00414-19-01 | FLANGE BOLT M8X55 | $3.50 | 1 |
| 7 | A00647-11-00 | SPACER M8X10XL3.5 | $5.30 | 1 |
| 8 | A00004-22-36 | FLANGE CAP NUT M8 | $2.00 | 1 |
| 9 | A00437-07-00 | DRIVE CHAIN 428-108L | $68.30 | 1 |
| 10 | A00001-19-19 | BUTTON HEAD ALLEN BOLT M6X8 | $2.00 | 2 |
| 11 | A00438-07-00 | REAR BRAKE HOSE HOLDER | $4.40 | 1 |
| 12 | A00008-19-03 | FLANGE BOLT M6X12 | $2.00 | 2 |
| 13 | A00649-11-00 | FRONT CHAIN SLIDER | $19.30 | 1 |
| 14 | A00001-22-03 | FLANGE LOCKNUT M12 | $2.50 | 1 |
| 15 | A00003-28-01 | BEARING 6001RS | $12.30 | 2 |
| 16 | A00650-11-00 | SWINGARM AXLE | $10.50 | 1 |
| 17 | A00648-11-00 | SPACER M15X20XL164 | $8.00 | 1 |
| 18 | A00651-11-00 | SWINGARM L440 | $127.80 | 1 |
| 19 | A00676-11-00 | FRAME PLUG (NOT SELLABLE) | $0.00 | 2 |
