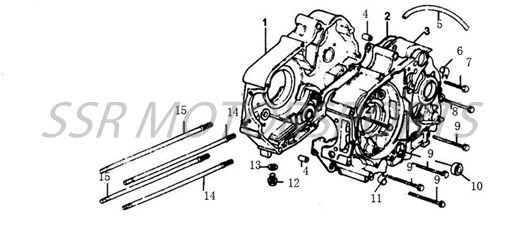

CRANKCASE
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A03288-09-00 | Right Crankcase Half | $157.50 |
| 2 | A00330-13-00 | Crankcase Gasket | $17.50 |
| 3 | A03300-09-00 | Left Crankcase Half | $187.30 |
| 4 | A00002-23-00 | Dowel Pin M10x14 | $2.00 |
| 5 | A01683-09-00 | Crankcase Vent Hose | $10.50 |
| 5-1 | A00385-14-00 | Hose Clamp | $2.00 |
| 6 | A01685-09-00 | Hose Retainer | $2.00 |
| 7 | A00428-19-08 | Case Bolt M6x50 | $2.00 |
| 8 | A00429-19-08 | Case Bolt M6x60 | $2.50 |
| 9 | A00430-19-08 | Case Bolt M6x65 | $2.50 |
| 10 | A00002-26-00 | Oil Seal | $4.40 |
| 11 | A01100-09-00 | Stator Wire Retainer | $2.00 |
| 12 | A01102-09-00 | Oil Drain Bolt | $4.40 |
| 13 | A00012-21-04 | Crush Washer | $2.00 |
| 14 | A00137-19-04 | Cylinder Stud A | $12.30 |
| 15 | A00138-19-04 | Cylinder Stud B | $12.30 |
