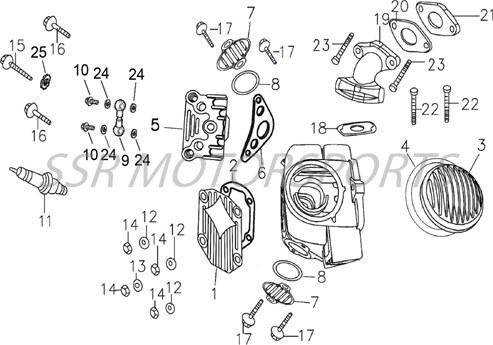

CYLINDER HEAD COVERS
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A01648-09-00 | Cylinder Head Cover | $24.50 |
| 2 | A00162-13-00 | Head Cover Gasket | $8.80 |
| 3 | A01649-09-00 | Timing Cover | $22.80 |
| 4 | A00163-13-00 | Left Cover Gasket | $8.80 |
| 5 | A01650-09-00 | Right Head Cover | $22.80 |
| 6 | A00164-13-00 | Right Cover Gasket | $8.80 |
| 7 | A01651-09-00 | Tappet Cover | $8.80 |
| 8 | A00094-27-00 | O-Ring | $4.40 |
| 11 | CR7HSA | Spark Plug | $9.60 |
| 12 | A00008-21-01 | Washer M7 | $2.00 |
| 13 | A00269-21-01 | Copper Washer | $2.00 |
| 14 | A00003-22-36 | Flange Cap Nut M6 | $2.00 |
| 15 | A00439-19-07 | Timing Bolt M6x110 | $2.60 |
| 16 | A00418-19-08 | Case Bolt M6x16 | $2.00 |
| 17 | A00003-19-05 | Flange Bolt M6x16 | $2.00 |
| 18 | A00292-14-00 | Intake Gasket | $4.40 |
| 19 | A00293-14-00 | Intake Manifold | $42.00 |
| 20 | A00274-13-00 | Carb Gasket | $4.40 |
| 21 | A00377-14-00 | Intake Insulator | $8.80 |
| 22 | A00419-19-08 | Case Bolt M6x20 | $2.00 |
| 23 | A00424-19-08 | Case Bolt M6x32 | $2.00 |
| 24 | A00549-04-00 | Sealing Washer | $2.00 |
| 25 | A01177-09-00 | Aluminum Washer | $2.00 |
