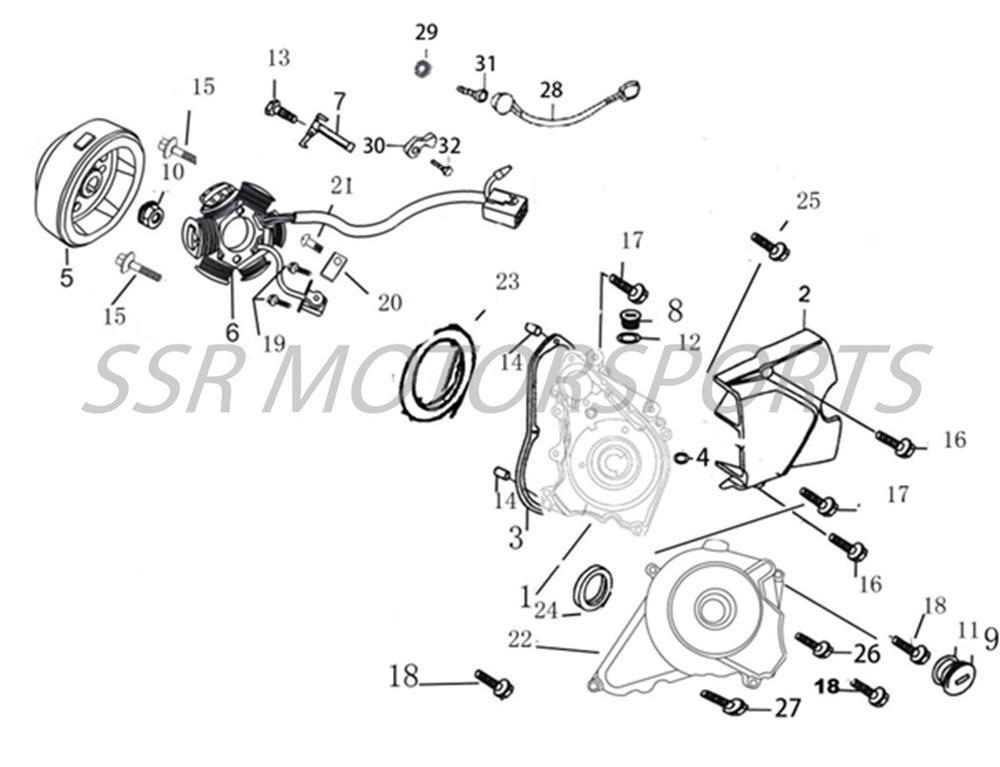

LEFT ENGINE COVER & STATOR
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A02504-09-00 | Starter Motor Bracket | $31.50 |
| 2 | A02989-09-00 | Countershaft Sprocket Cover | $29.80 |
| 3 | A00244-13-00 | Stator Cover Gasket | $10.50 |
| 4 | A00022-27-00 | O-Ring | $2.00 |
| 5 | A02513-09-00 | Flywheel / Starter Clutch | $75.30 |
| 6 | A03309-09-00 | Stator Assy | $101.50 |
| 7 | A02509-09-00 | Stator Wire Clamp | $2.60 |
| 8 | A02512-09-00 | Timing Plug | $4.40 |
| 9 | A02310-09-00 | Crank Inspection Plug | $15.80 |
| 10 | A00004-22-08 | Special Nut M10 | $2.00 |
| 11 | A00055-27-00 | O-Ring | $2.00 |
| 12 | A00056-27-00 | O-Ring | $2.60 |
| 13 | A00025-19-01 | Flange Bolt M6x14 | $2.00 |
| 14 | A00003-23-00 | Dowel Pin | $2.00 |
| 15 | A00420-19-08 | Case Bolt M6x22 | $2.00 |
| 16 | A00422-19-08 | Case Bolt M6x28 | $2.00 |
| 17 | A00064-19-01 | Flange Bolt M6x32 | $2.00 |
| 18 | A00425-19-08 | Case Bolt M6x35 | $2.00 |
| 19 | A00065-19-01 | Hex Bolt M5x12 | $2.00 |
| 20 | A00033-24-03 | Wire Clamp | $2.00 |
| 21 | A00121-19-01 | Bolt M5x6 | $2.00 |
| 22 | A02514-09-00 | Stator Cover | $56.00 |
| 23 | A00010-27-00 | O-Ring | $8.80 |
| 24 | A00059-26-00 | Oil Seal | $4.40 |
| 25 | A00437-19-08 | Case Bolt M6x105 | $2.50 |
| 26 | A00421-19-08 | Case Bolt M6x25 | $2.00 |
| 27 | A00428-19-08 | Case Bolt M6x50 | $2.00 |
| 28 | A02920-09-00 | Rubber Plug | $4.40 |
| 29 | A00011-21-01 | Washer | $2.00 |
| 31 | A00453-19-03 | Hex Bolt M6x16 | $4.40 |
| 32 | A00445-19-08 | Case Bolt M6x12 | $2.00 |
