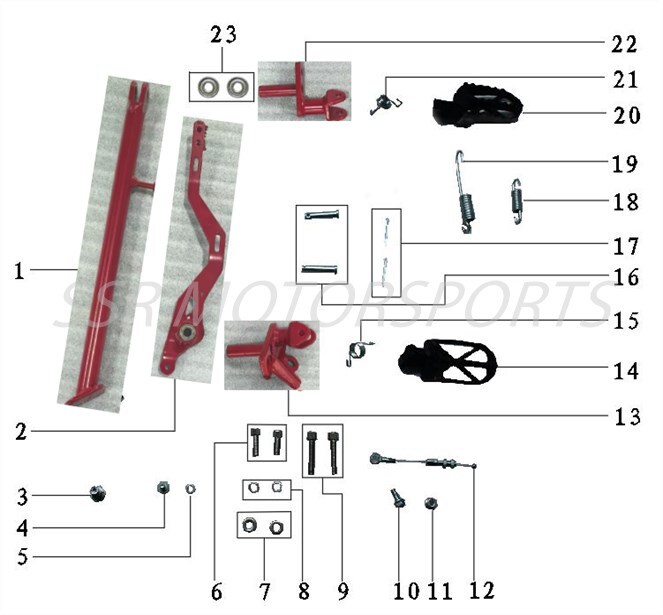

REAR BRAKE PEDAL, SIDE STAND AND FOOTPEGS
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A00661-11-00 | Side Stand | $26.30 |
| 2 | A00637-05-00 | Rear Brake Pedal | $31.50 |
| 3 | A00001-19-31 | Flange Step Bolt | $2.50 |
| 4 | A00008-19-03 | Flange Bolt M6x12 | $2.00 |
| 5 | A00002-21-02 | Lock Washer M6 | $2.00 |
| 6 | A00015-19-01 | Flange Bolt M8x20 | $2.00 |
| 7 | A00013-21-01 | Washer | $2.00 |
| 8 | A00001-21-02 | Lock Washer | $2.00 |
| 9 | A00014-19-01 | Flange Bolt M8x40 | $2.50 |
| 10 | A00002-19-01 | Flange Bolt M6x16 | $2.00 |
| 11 | A00005-22-04 | Flange Locknut M6 | $2.00 |
| 12 | A00772-04-00 | Brake Pedal Cable | $8.00 |
| 13 | A00658-11-00 | Left Footpeg Bracket | $12.30 |
| 14 | A00629-05-00 | Left Footpeg | $21.00 |
| 15 | A00630-05-00 | Right Footpeg Spring | $2.00 |
| 16 | A00620-05-00 | Footpeg Pivot Pin | $2.00 |
| 17 | A00019-28-01 | Cotter Pin | $2.00 |
| 18 | A00633-05-00 | Brake Return Spring | $2.50 |
| 19 | A00634-05-00 | Side Stand Spring | $2.60 |
| 20 | A00631-05-00 | Right Footpeg | $21.00 |
| 21 | A00632-05-00 | Left Footpeg Spring | $2.00 |
| 22 | A00659-11-00 | Right Footpeg Bracket | $12.30 |
| 23 | A00098-28-00 | Brake Pedal Bearing | $5.30 |
