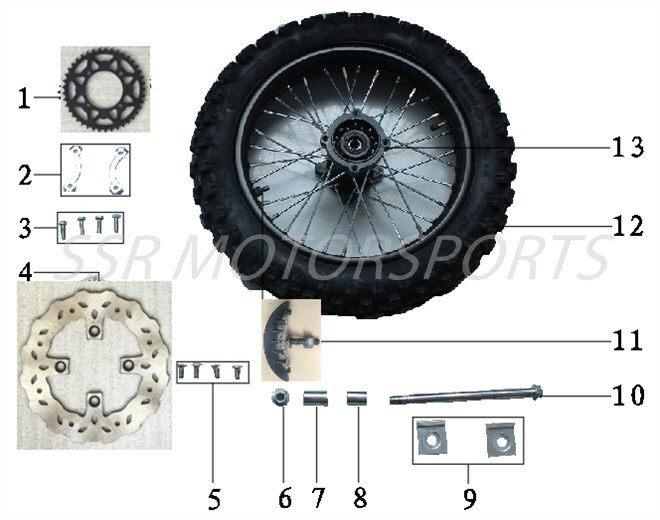

REAR WHEEL
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A00244-07-00 | Rear Sprocket 41T | $45.50 |
| 2 | A00296-07-00 | Sprocket Bolt Retainer Plate | $8.80 |
| 3 | A00007-19-11 | Flange Bolt M8x25 | $2.00 |
| 4 | A00771-04-00 | Rear Brake Rotor | $42.00 |
| 5 | A00034-19-10 | Rotor Bolt M8x16 | $2.00 |
| 6 | A00003-22-01 | Flange Locknut M14 | $2.60 |
| 7 | A00673-18-00 | Rear Left Wheel Spacer | $4.40 |
| 8 | A00659-18-00 | Rear Right Wheel Spacer | $6.10 |
| 9 | A00660-18-00 | Chain Adjuster Bracket | $8.00 |
| 10 | A00674-18-00 | Rear Wheel Axle | $38.50 |
| 11 | A00352-18-00 | Rim Lock | $8.80 |
| 12 | A00545-18-00 | Rear Tire w/ Tube | $64.80 |
| 13 | A00549-18-00 | Rear Wheel Assy | $109.00 |
