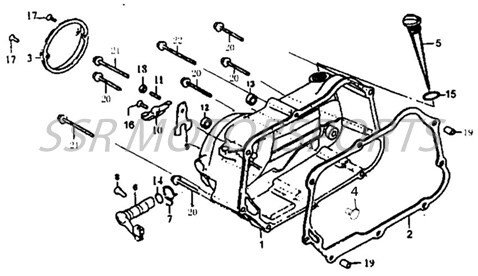

RIGHT ENGINE COVER
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A03284-09-00 | Clutch Cover | $101.50 |
| 2 | A00120-13-00 | Clutch Cover Gasket | $15.80 |
| 3 | A03285-09-00 | Clutch Adjustment Cover | $24.50 |
| 4 | A01278-09-00 | Clutch Push Rod | $6.10 |
| 5 | A01311-09-00 | Oil Level Dipstick | $8.80 |
| 6 | A01312-09-00 | Clutch Actuator | $31.50 |
| 7 | A01313-09-00 | Actuator Spring | $2.00 |
| 8 | A01314-09-00 | Actuator Pin | $2.00 |
| 9 | A01315-09-00 | Pressure Plate | $10.50 |
| 10 | A01316-09-00 | Clutch Detent | $12.30 |
| 11 | A01317-09-00 | Actuator Screw | $2.00 |
| 12 | A00081-26-00 | Oil Seal | $6.10 |
| 13 | A00005-26-00 | Oil Seal | $6.10 |
| 14 | A00092-27-00 | O-Ring | $2.00 |
| 15 | A00006-27-00 | O-Ring | $2.60 |
| 16 | A00003-20-01 | Screw M6x16 | $2.00 |
| 17 | A00007-20-01 | CS Screw M5x12 | $2.00 |
| 18 | A00001-22-01 | Nut M6 | $2.00 |
| 19 | A00003-23-00 | Dowel Pin | $2.00 |
| 20 | A00426-19-08 | Case Bolt M6x40 | $2.00 |
| 21 | A00436-19-08 | Case Bolt M6x80 | $2.50 |
| 22 | A00430-19-08 | Case Bolt M6x65 | $2.50 |
