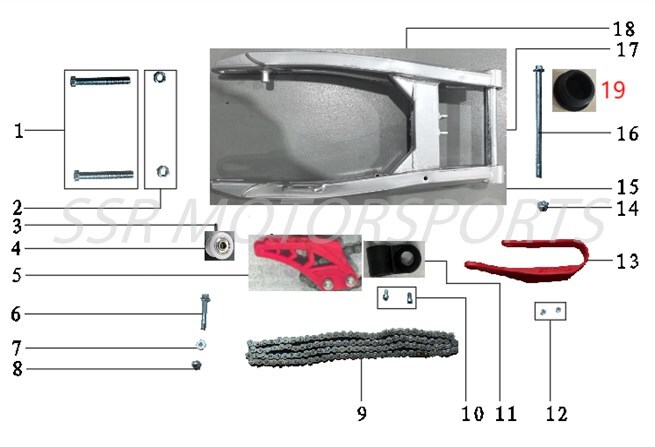

SWINGARM
Click parts on table to add
| # | Part # | Description | Price |
|---|---|---|---|
| 1 | A00014-19-01 | Flange Bolt M8x40 | $2.50 |
| 2 | A00003-22-03 | Flange Locknut M8 | $2.00 |
| 3 | A00007-28-00 | Ball Bearing | $4.40 |
| 4 | A00645-11-00 | Chain Roller | $8.80 |
| 5 | A00646-11-00 | Lower Chain Guide | $10.50 |
| 6 | A00414-19-01 | Flange Bolt M8x55 | $3.50 |
| 7 | A00647-11-00 | Spacer | $5.30 |
| 8 | A00004-22-36 | Flange Cap Nut | $2.00 |
| 9 | A00437-07-00 | Drive Chain | $68.30 |
| 10 | A00001-19-19 | Button Head Bolt | $2.00 |
| 11 | A00438-07-00 | Brake Hose Holder | $4.40 |
| 12 | A00008-19-03 | Flange Bolt M6x12 | $2.00 |
| 13 | A00649-11-00 | Front Chain Slider | $19.30 |
| 14 | A00001-22-03 | Flange Locknut M12 | $2.50 |
| 15 | A00003-28-01 | Bearing 6001RS | $12.30 |
| 16 | A00650-11-00 | Swingarm Axle | $10.50 |
| 17 | A00648-11-00 | Spacer | $8.00 |
| 18 | A00651-11-00 | Swingarm | $127.80 |
| 19 | A00676-11-00 | Frame Plug (Not Sold) | $0.00 |
