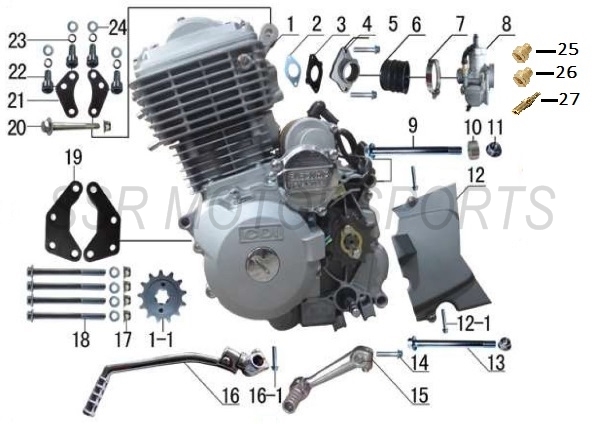

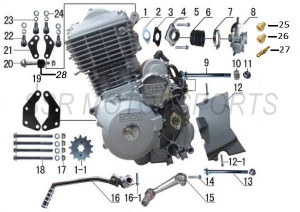

Engine Assembly
| ENGINE ASSY | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00999-09-00 | COMPLETE ENGINE ASSY | CB150 428X13T *OVERSIZE* | 1 | Assy. | $461.00 |
| 1-1 | A00357-07-00 | FRONT SPROCKET | 428X15T | 1 | Pc. | $18.00 |
| 2 | A00096-13-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $7.00 | |
| 3 | A00213-14-00 | INTAKE INSULATOR | 1 | Pc. | $8.00 | |
| 4 | A00290-14-00 | INTAKE MANIFOLD FLANGE | 1 | Pc. | $16.00 | |
| 5 | A00003-19-01 | FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 6 | A00214-14-00 | INTAKE MANIFOLD | 1 | Pc. | $11.00 | |
| 7 | A00005-24-02 | HOSE CLAMP | 32-44 | 2 | Pcs. | $8.00 |
| 8 | A00406-12-00 | CARBURETOR ASSY | PE28-3 | 1 | Assy. | $112.00 |
| 9 | A00004-19-01 | FLANGE BOLT | M10X120 | 1 | Pc. | $3.50 |
| 10 | A00315-11-00 | COLLAR | 10X20X10 | 1 | Pc. | $2.50 |
| 11 | A00004-22-34 | FLANGE LOCKNUT | M10 | 2 | Pcs. | $2.00 |
| 12 | A01000-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $39.00 | |
| 12-1 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 13 | A00005-19-88 | FLANGE BOLT | M10X115 | 1 | Pc. | $3.50 |
| 14 | A00006-19-01 | FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 15 | A00288-05-00 | GEAR SHIFTER | 1 | Pc. | $18.00 | |
| 15 | A00532-05-00 | GEAR SHIFTER | 2018-19 MODEL | 1 | Pc. | $18.00 |
| 16 | A00289-05-00 | KICKSTARTER LEVER | 1 | Pc. | $41.00 | |
| 16 | A00533-05-00 | KICKSTARTER LEVER | 2018-19 MODEL | 1 | Pc. | $41.00 |
| 16-1 | A00007-19-01 | FLANGE BOLT | M8X25 | 1 | Pc. | $1.50 |
| 17 | A00100-22-34 | FLANGE LOCKNUT | M8 | 5 | Pcs. | $1.50 |
| 18 | A00008-19-01 | FLANGE BOLT | M8X95 | 4 | Pcs. | $2.50 |
| 19 | A00316-11-00 | ENGINE BRACKET A | 2 | Pcs. | $10.00 | |
| 20 | A00009-19-11 | FLANGE BOLT | M8X75 | 1 | Pc. | $2.00 |
| 21 | A00317-11-00 | ENGINE BRACKET B | 2 | Pcs. | $6.00 | |
| 22 | A00001-19-02 | ALLEN BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 23 | A00001-21-02 | LOCK WASHER | M8 | 4 | Pcs. | $1.50 |
| 24 | A00013-21-01 | WASHER | M8 | 8 | Pcs. | $1.50 |
| 25 | A00067-01-00 | MAIN JET #125 | OPTIONAL | 1 | Pc. | $11.00 |
| 26 | A00068-01-00 | MAIN JET #130 | OPTIONAL | 1 | Pc. | $11.00 |
| 27 | A00069-01-00 | PILOT JET #40 | OPTIONAL | 1 | Pc. | $11.00 |
