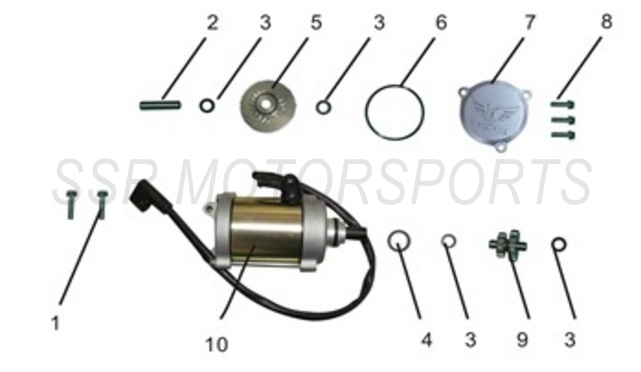

Starter Motor
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00040-19-01 | FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 2 | A02312-09-00 | STARTER GEAR SHAFT | 1 | Pc. | $4.00 | |
| 3 | A00071-21-01 | THRUST WASHER | 10.5X18X0.5 | 4 | Pcs. | $1.50 |
| 4 | A00058-27-00 | O-RING | 24.5X3 | 1 | Pc. | $2.00 |
| 5 | A02313-09-00 | STARTER GEAR | 1 | Pc. | $29.00 | |
| 6 | A00057-27-00 | O-RING | 62X3 | 1 | Pc. | $2.50 |
| 7 | A02314-09-00 | STARTER MOTOR CAP | 1 | Pc. | $39.00 | |
| 8 | A00016-19-03 | BOLT | M6X20 | 3 | Pcs. | $1.50 |
| 9 | A02315-09-00 | STARTER IDLER GEAR | 1 | Pc. | $24.00 | |
| 10 | A02316-09-00 | STARTER MOTOR | 1 | Pc. | $104.00 |
